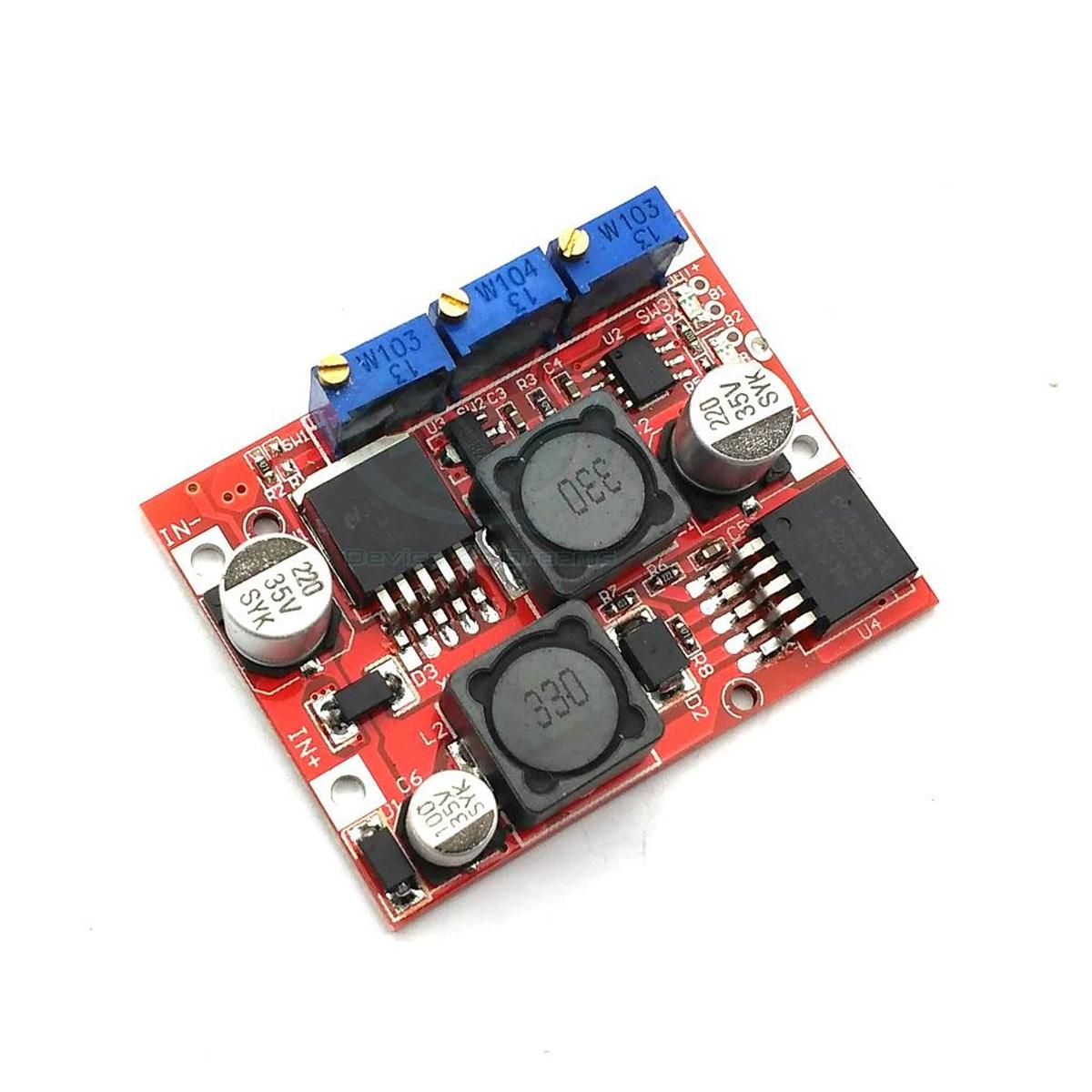

LM2596 LM2577 DC-DC Auto Step-up/down Converter Boost Buck Power Supply Module
- Input Voltage :4-35V
- Output voltage: Continuously adjustable(1.25-25V unload adjust)
- Output current: 3A Max(If more than 15W, please install the heat sink)
- CC range :0-2A (adjustable)
- Revolving light current: CC value * (1%-100%), default is 0.1 times
- Minimum voltage difference: 2V
- Output power: natural cooling 15W
- Conversion efficiency: 80% (the higher the output voltage, the higher the efficiency)
- Operating Temperature: Industrial (-40 Cto +85 C) (ambient temperature more than 40C, lower power use, or add heat sink)
- Full load temperature rise: 45 C
- Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.
- Output short circuit protection: Yes, constant current.
- Connect method: Can solder on the PCB with wire directly
- Input: IN+ input Positive is, IN- input negative
- Output: OUT+ output is positive, OUT- output negative
- Module Size: 50 x 37 x 13mm
