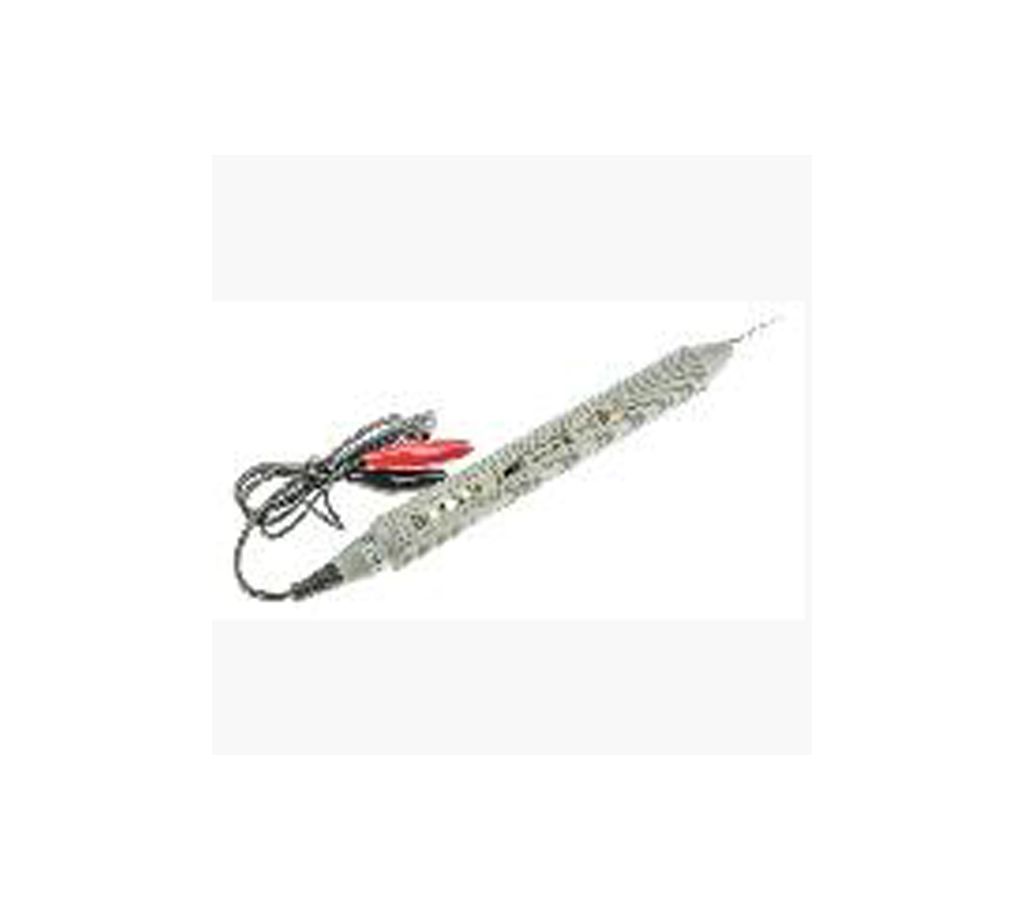

Logic Probe And pulsar, GLP-1A, Goodwill, Taiwan
Brand: Goodwill
Model: GLP-1A
Country of origin: Taiwan
Country of Manufacturing: Taiwan
Features
Combining a Logic Probe and Pulser Combined into One
Probe for Troubleshooting Digital Circuits
Operating Voltage: 4VDC ~ 18VDC
Maximum Input Signal Frequency: 50MHz
TTL: Logic “1”>3.0V±0.25V, Logic”0”<0.75±0.25V
CMOS: Logic “1”>60%VCC±5%, Logic”0”<15%VCC±5%
Minimum Detectable Pulse Width: 10nsec
Pulser: Sync input impedance 120kΩ
Pulse Repetition Rate: Switchable 0.5/400Hz
Pulse width: 10μsec
Dimensions & Weight: 18(W)x210(H)x18(D)mm, Approx. 50g
