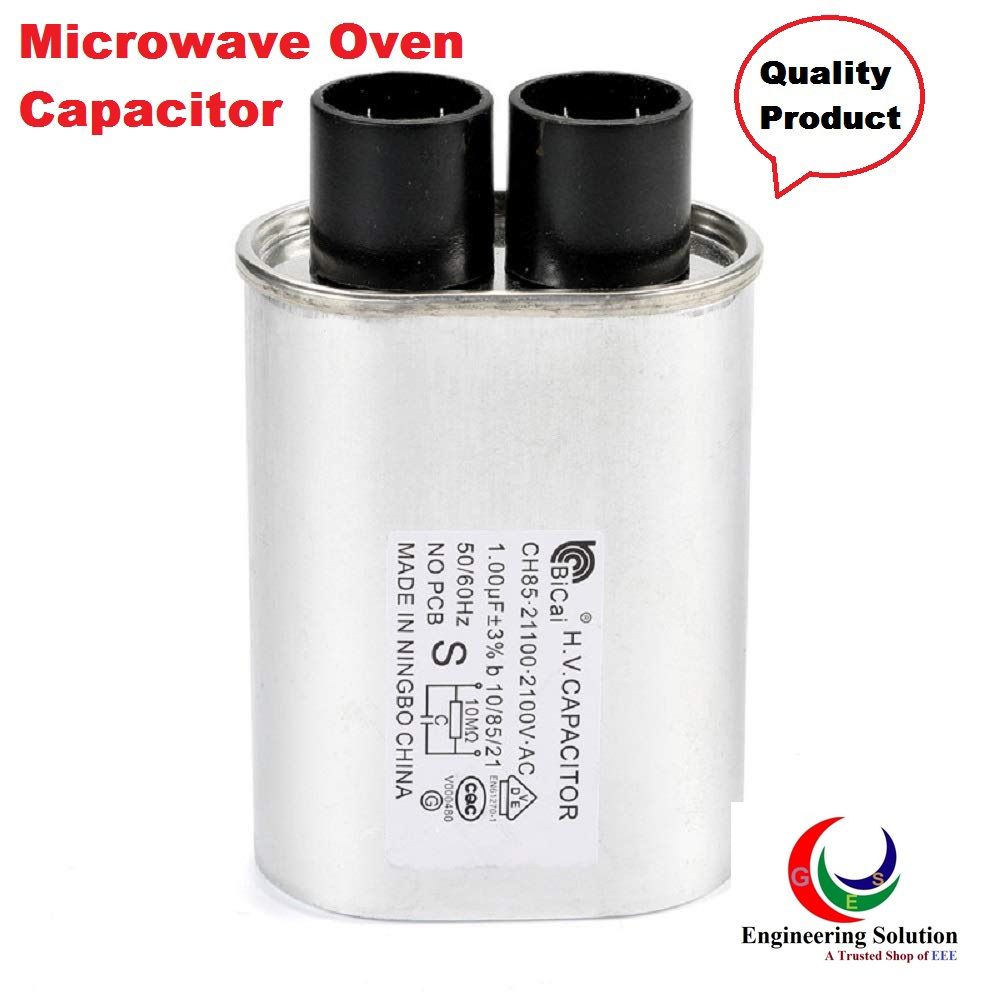

মাইক্রোওয়েভ ওভেন উচ্চ ভোল্টেজ ক্যাপাসিটর 2100 vac
- Production Name: Microwave Oven HV Capacitor,Module Type: Standard CH85,Withstand Voltage:2100 V 50/60Hz AC, Volume: 1.00 MFD uF,Tolerance:±3%, Connect Pin Size: 4.8x0.5mm/0.19x0.02in(3/16 in standard terminal) Universal and professional and compatible microwave high voltage capacitor for GE Samsung LG Media Hair Amana Kenmore Mayta and Whirlpool microwave CQC and VDE certificated, executed EN61270-1 standard,100% compatible, ensure safe enough Embody one 10M ohm inside capacitor, it will release high voltage through the ressistance and diode on idle time or after shutting down power, ensure safety. Key Remind: Capacitor with 3/16 in terminals 2+2, each pole 2 terminals, size-3/16 *0.02 in(4.8*0.5mm),1 Year warranty ›See more product details.
- Production Name: Microwave Oven HV CapacitorKey Feature: Professional and Universal Microwave Oven Capacitor3/16in Standard TerminalModule Type: Standard CH85Withstand Voltage:2100 V 50/60Hz ACVolume: 1.00 MFD uFTolerance:±3%OverView Size(with Pin):86x53x33/ 3.4x2.1x1.3inNet Weight: 144g/5.2 Oz
- 2 Poles, Each Pole has 2 terminalsTerminal Size: 4.8x0.5mm/0.19x0.02in(3/16in standard terminal)3/16 inch standard terminals is much smaller than 1/4 inchstandard terminal on eyesight, two common type of quick connectterminal are 3/16 and 1/4 inchremark:Only Power men or people trained with electrical skill forrepairing.Conform high voltage is released, then begin to replace.1. Now two common types of micwave capacitors are used widely,one type with 1/4 inch standard termininal(0.25*0.03 inch, Width*Thickness,6.35*0.8mm), Another type with 3/16 standardterminals(3/16 * 0.02 inch,Width * Thickness,4.8*0.5mm)2. This capacitor is the type with 3/16 inch standardterminals,2+2, each side 2 terminals3. It will be added 4 or more relative quick connectors withcapacitor together free for you from June, 20194. You can remove the old quick connectors if they are compatiblefor new replacing capacitor, just only need crimping pliers toreconnect wires,a few minutes' work5. Your can search terms(BlueCatELE) for my 1/4 inch typemicrwave capacitors, common they show common modules with volume1.05, 1.00, 0.91 mfd. If no show that it is not stock foravailabe6. Please use capacitor meter to test vollume, not usemultifunction meter to test
