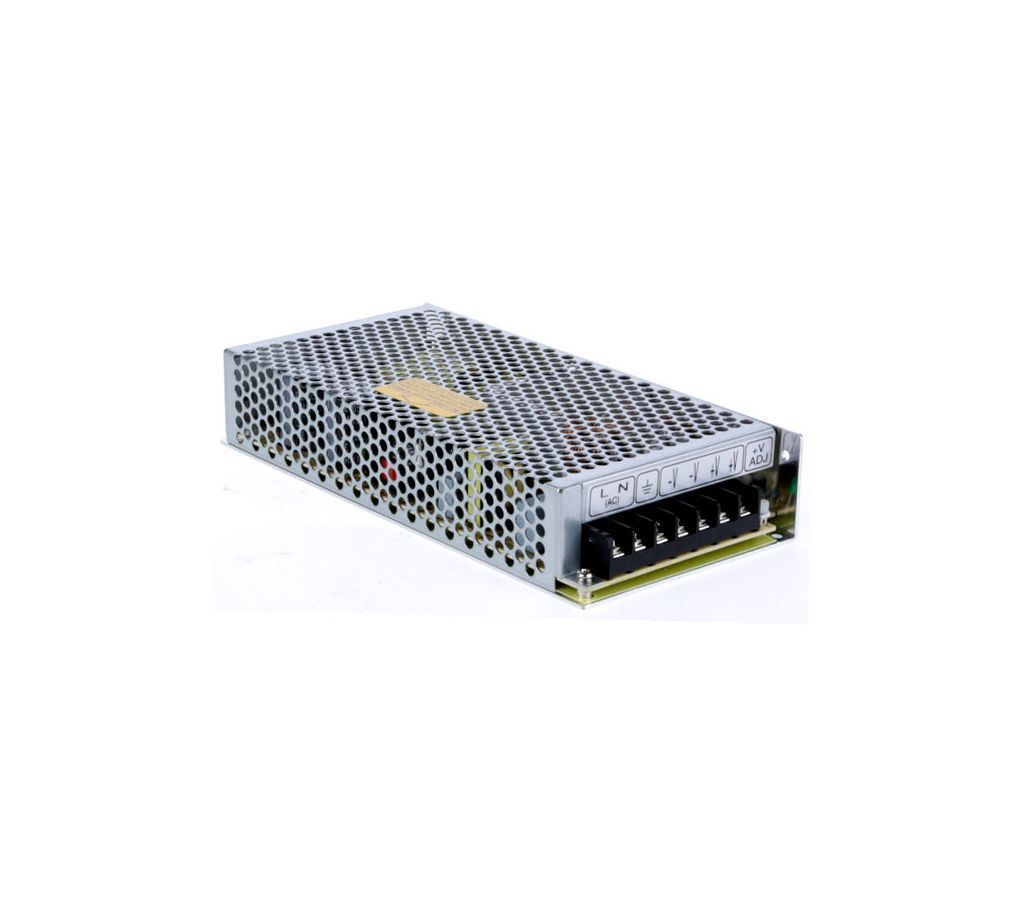

Mean Well RS-150-24 AC/DC Single Output Switching Power Supply 24V 6.5A 150W
Mean Well RS-150-24 AC/DC সিংগেল আউটপুট সুইচিং পাওয়ার সাপ্লাই 24V 6.5A 150W
Features :
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105°C long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70°C
Withstand 5G vibration test
High efficiency, long life and high reliability
ISO-9001 Certificated Manufacturer
AC/DC Power Supply Single-OUT 24V 6.5A 150W 7-Pin
Part No: RS-150-24
Efficiency: 86 %
Input Frequency: 47 to 63 Hz
Operating Temperature: -20 to 70 °C
Dimension: 199 x 98 x 38mm
DC Input Voltage: 248 to 373 V
AC Input Voltage: 88 to 132,176 to 264 V
