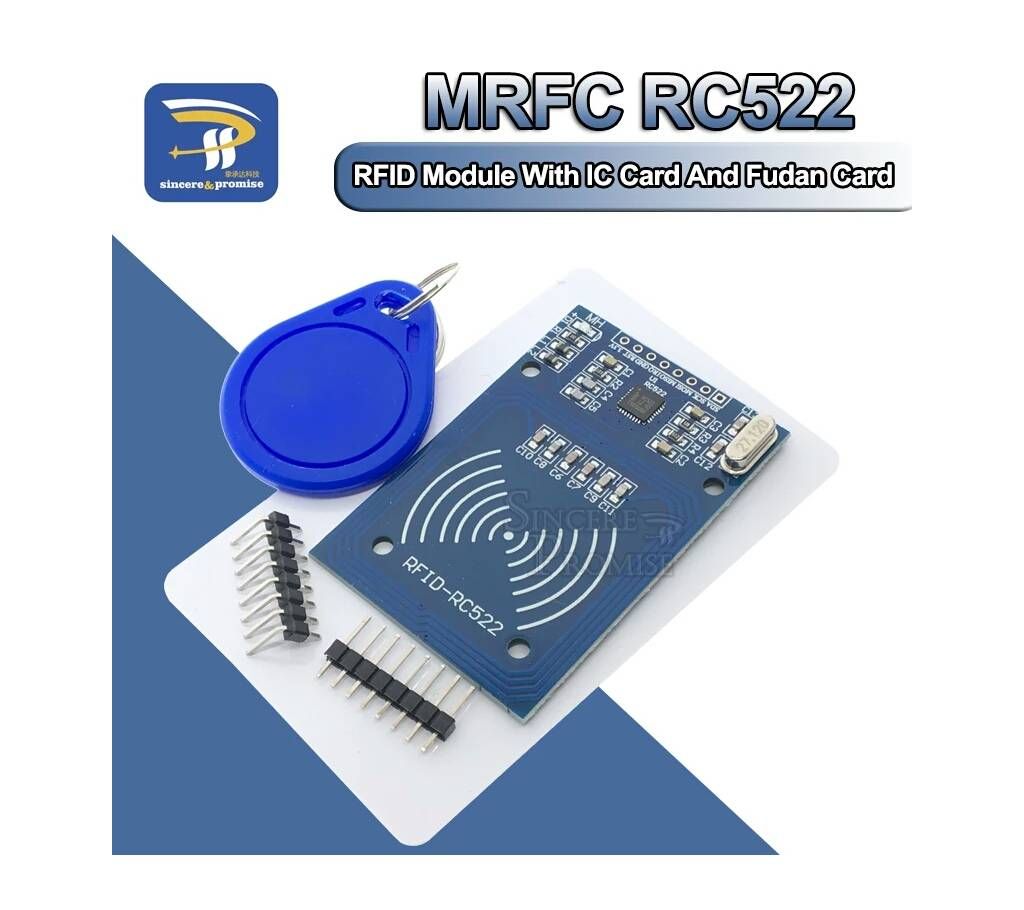

MFRC-522 RC522 RFID RF IC card sensor module to se
কার্ড রিড এন্টেনা আই সি কার্ড প্যাক
Description
100% brand new and of high quality
Applied to 13.56MHz communication without contact card reader chip highly integrated
A low-voltage, small size and non-contact chip card reader.
Using advanced modulation and demodulation concept fully integrated into all kinds of 13.56MHz passive contactless communication methods and protocols.
Can be loaded directly into a variety of mold readers.
Easy to use, low-cost, suitable for the development of equipment
Specifications:
Color: blue
Size: about 4*6cm
Data transfer rate: Max 10Mbit/s
Working current: 13-26mA
Spare current: 10-13mA
Sleep current: <80uA
Max. current: <30mA
Working voltage: DC 3.3V
Spare voltage: DC3.3V
Working frequency: 13.56MHz
Working temperature: -20-80℃
Storage temperature: -40-85℃
Relative humidity: 5-95%
Supported card type: for 1 S50, for 1 S70, for UltraLight, for Pro, for Desfire
Package include:
1*RF module
1*IC card
1*key chain
2*plug pins
Imported from USA
Qty-All Unit in description
