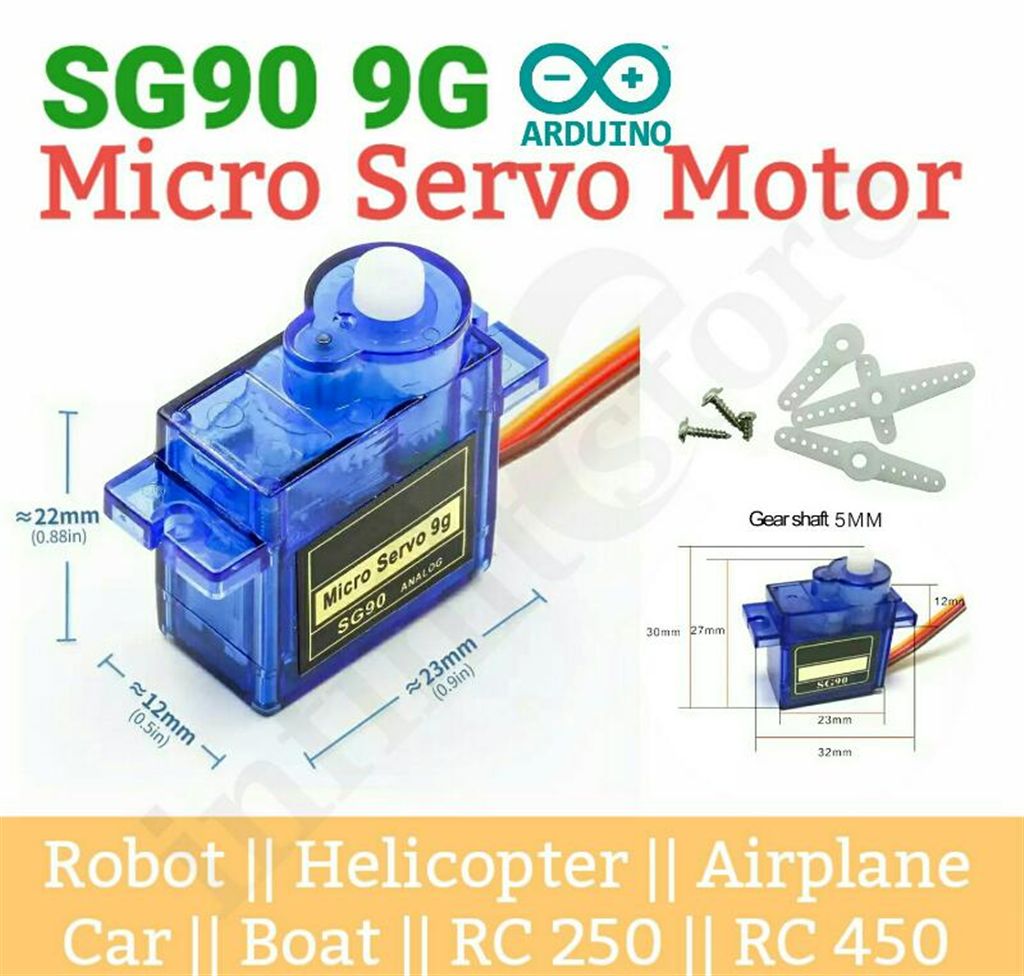

Micro Servo Motor SG90
মাইক্রো সার্ভো মোটর SG90
Model: SG90 9G
Operating voltage: 4.8V-6V
No-load speed: 0.12 seconds / 60 degrees (4.8V)
Stall torque of 1.2 - 1.4 kg / cm (4.8V)
Operating temperature: -30 to +60
Dead-set: 7 microseconds
3 pole wure
All nylon gear
Dual ball bearing
Size: 21.5mmX11.8mmX22.7mm
Weight: 9 grams
Wire length 150mm
Wire Marks :
Dark gray: GND
Red: VCC 4.8-7.2V
Orange line: pulse input
Fit for All kind of R/C Toys, Rotot 6CH, Helicopter, Airplane, Car, Boat, RC 250, RC 450 etc
All original accessories include: steering gear, rocker arm, screws, etc.
