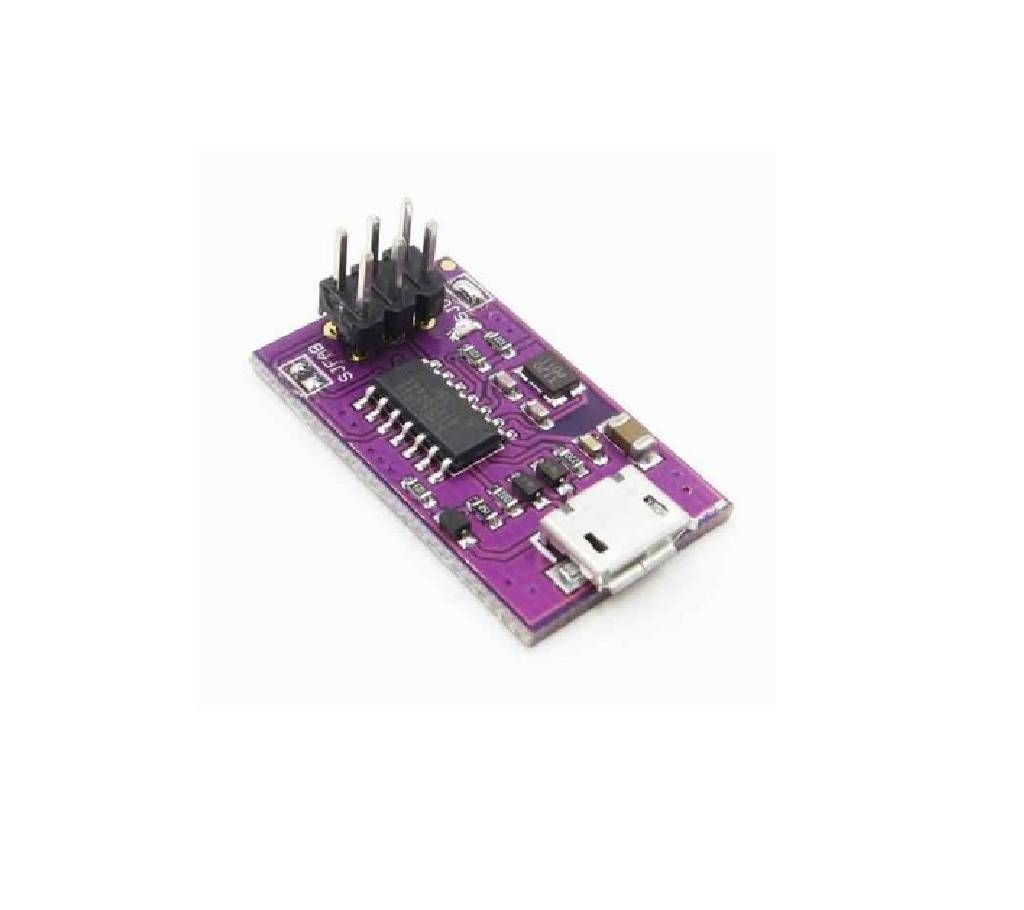

Micro USB Tiny AVR ISP ATtiny44 Programmer
মাইক্রো ইউএসবি Tiny এভিআর ISP ATtiny44 Programmer
5V Micro USB Tiny AVR ISP ATtiny44 USBTinyISP Programmer For Arduino Boot loader
Product description:
USB tiny ISP is designed for AVR ,based on USB connector's ISP down loader.
Officially supported by Arduino IDE and compatible usbtinyisp,we can burn Arduino bootloader onto chips, and practically program any Atmel AVR microcontroller by this powerful AVR ISP programmer.
The Tiny ISP Programmer is able to provide the 5V power supply voltage to the board being programmed. If you want to power the board through the ISP you have to close the SJVCC jumper on the board.
With this programmer you can upload sketches and burn the boot loader on any AVR based boards, including Arduinos. By uploading a sketch with an external programmer you can remove the boot loader and use the extra space for your sketch. The Arduino ISP can also be used to burn the Arduino boot loader, so you can recover your chip if you accidentally corrupt the boot loader. Burning the boot loader is also necessary when you use a new ATmega micro controller in your Arduino, and you wish to use the boot loader to upload a sketch via the USB-Serial connection.
Supports ATTiny45 and ATTiny85 chip for arduino programming,etc.
Specification:
Supply voltage:5 V
Micro controller:ATtiny44 (datasheet)
Connection with the computer:micro USB
Connection with the target board:ICSP
Board size:23x14mm(approx)
HOW TO USE:
Connect the Arduino ISP to your Arduino board's ICSP headers.
Make sure to match the orientation of the plugs by looking at the white dot on the corner of the connector
Open Arduino IDE ,chose the hardware name downloaded in the"board"
Select the "USB tinyISP" under "Burn Boot loader" menu
Then boot loader begins to download and completed after 10 seconds(atmega328).
