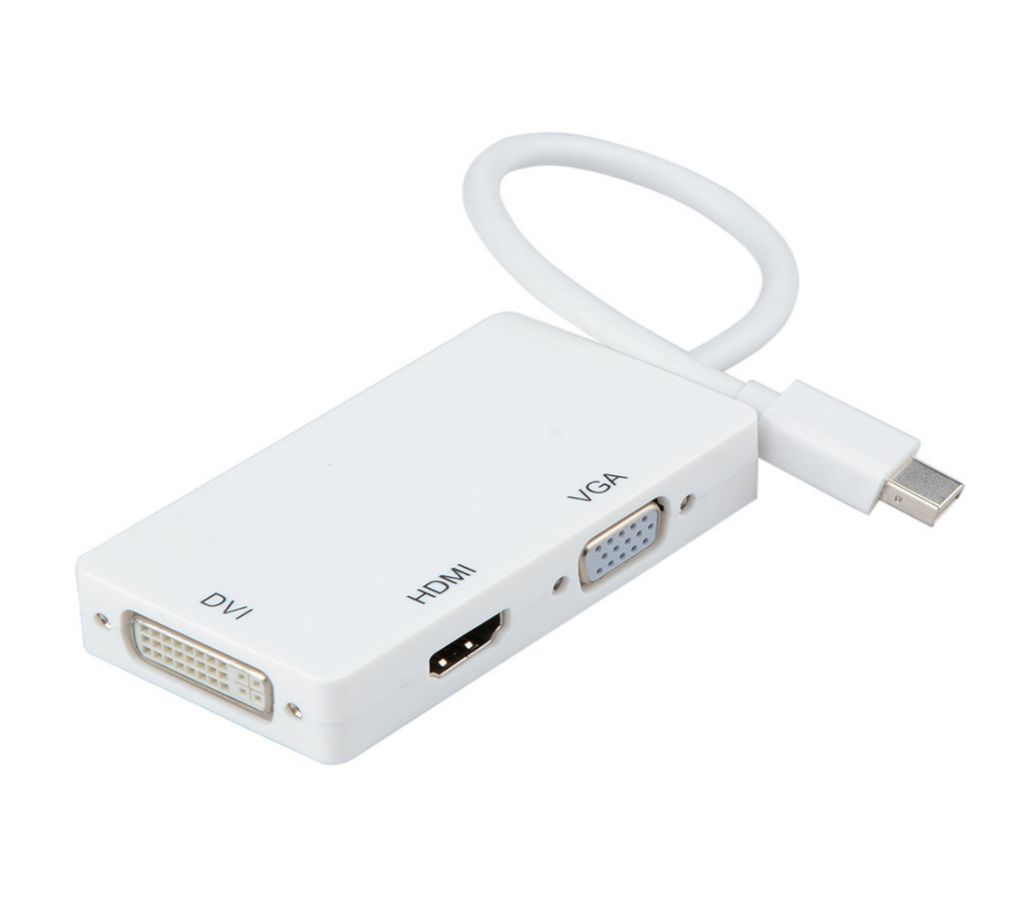

Mini Displayport Mini DP Thunderbolt To HDMI VGA DVI Multi-display Converter External Video Graphic Card Cable Adapter
মিনি ডিসপ্লে পোর্ট Mini DP Thunderbolt To HDMI VGA DVI কনভার্টার
Features of Mini Display Port DP Thunderbolt to DVI+VGA+HDMI Adapter
The adapter seamlessly connect Mac Book, Mac Book Pro, or Mac Book Air with a Mini display port to high definition displays
Support HDMI, DVI or VGA input port
You can connect the display to one of HDMI/DVI/VGA output ports
Support audio output. When connecting the iMac (Late 2009) and Mac Book Pro (Mid 2010) to HDMI display, please set “Sound” on the dialog box of“System Preferences” to get audio output
Note: Only one of the 3 outputs could be used at a time, you cannot use all of them simultaneously
This product with three output ports, and you can choose one of them to use at a time as you demand, the functions of the port as followings:
1.DVI output, connect the DVI devices using a DVI cable
2.HDMI output, connect the HDMI devices using a HDMI cable
3.VGA output, connect the VGA devices using a VGA cable.
4.Mini Display Port, connect Mac Book, Mac Book Pro, or Mac Book Air.
Features:
Support Mini Display Port 1.1a Dual-mode input
2.The HDMI can support audio output for iMac (Late 2009) and Mac Book Pro (Mid 2010)
3.Support HDMI/DVI/VGA output with the max resolution of 1920x1080p@60Hz, 225MHz/2.25Gbps per channel (6.75Gbps all channel), 12bit per channel
(36bit all channel) deep color.
4.Automatic detect the display by plugging and unplugging it.
5.Powered from Mini Display Port source.
Compatible models:
Mac Book Air, Mac Book Pro, iMac, and Mac mini with thunderbolt ports since 2011 are all supported.
Mac Book Air, Mac Book Pro, iMac, and Mac mini or PC with mini display port are also supported.
Input Signal:Mini Display Port 1.1a
Output Video:HDMI/DVI/VGA
Input: Mini Display Port Male 20pin
Output: HDMI Female Type A 19pin
Connector:DVI Female (24+1) VGA Female 15Pin
Vertical Frequency Range:50/60Hz
Video Amplifier Bandwidth:2.25Gbps/225MHz
HDMI/DVI/VGA:480i/480p,576p,720p,1080i/1080p
External Power Supply:No external power needed
