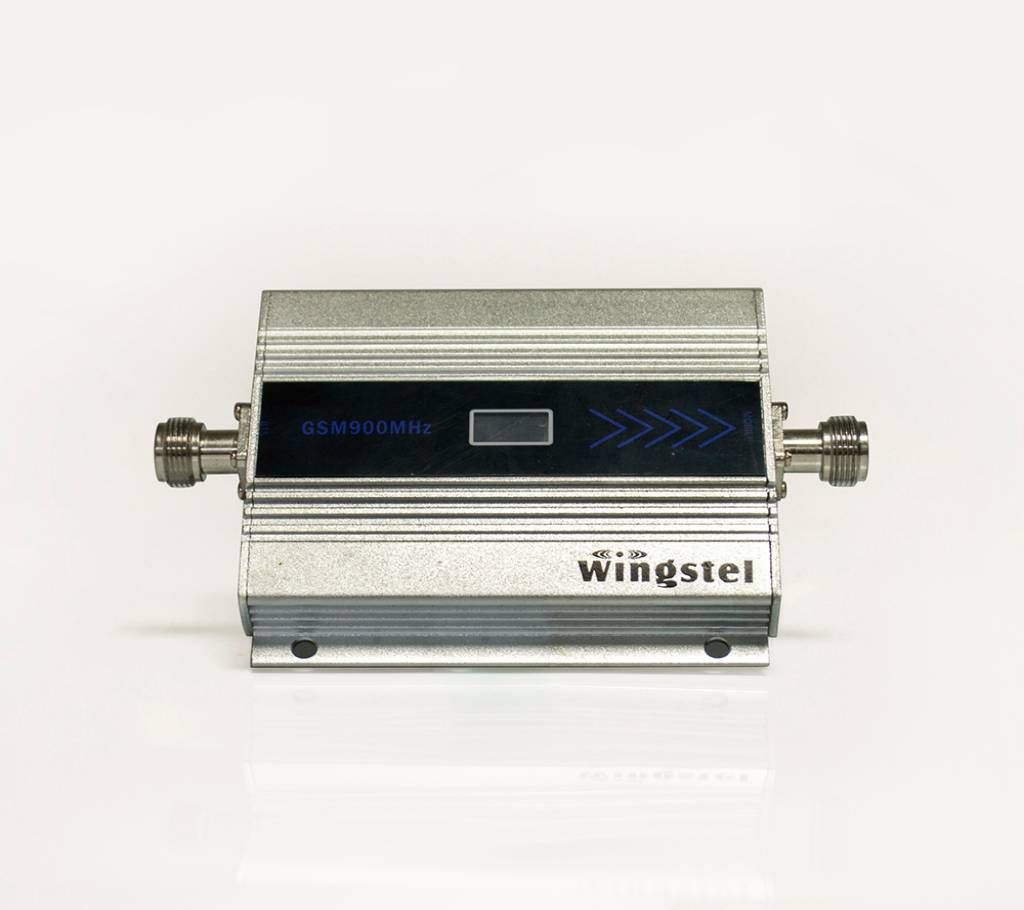

mobile signal repeater STG900S
মোবাইল সিগন্যাল রিপিটার
Frequency- 900MHz
Frequency Range- Uplink 890-915MHz
Downlink 935-960MHz
Gain- Uplink 60±3dBi
Downlink 65±3dBi
Export Power- 17dBm±3dBm
Power Supply- Input AC100V-240V 50/60Hz
Output 5V 2000mA
Size- 163 x 108 x 19mm
Weight- 0.6kg
Coverage Area- 500㎡
Pass Band Ripple- ≤3dBi
I/O Impedance- 50Ω
Connector Type- N female connector
Noise Figure- ≤4dBi
Transmission Delay- ≤0.5μs
Ambient Temperature- -10ºC~60ºC
Reliability- To the GB6993-86 standard
Electromagnetic Compatibility
To the ETS300 694-4 standard
