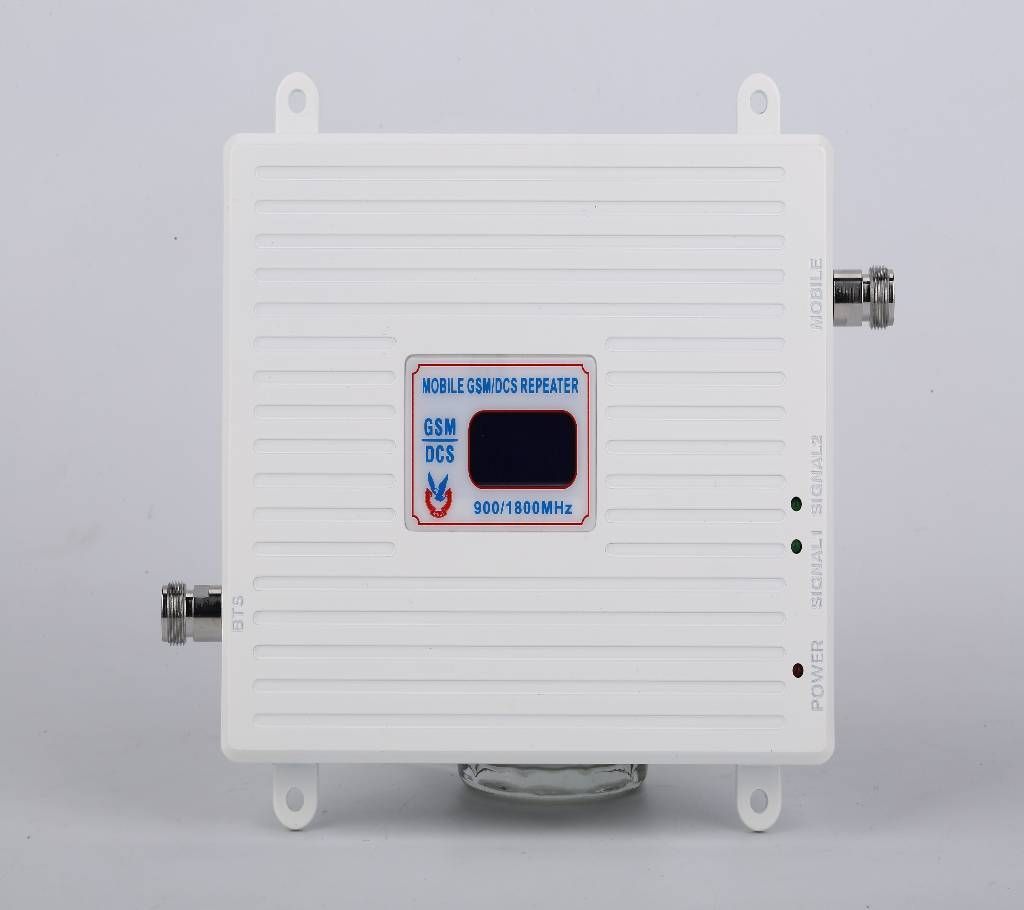

mobile signal repeater STGD05
মোবাইল সিগন্যাল রিপিটার GD05
Frequency - 900/1800MHz
Frequency Range- Uplink 890-915MHz / 1710-1785MHz
Downlink 935-960MHz / 1805-1880MHz
Gain-Uplink 60±3dBi
Downlink 65±3dBi
Export Power- 23dBm±3dBm
Power Supply- Input AC100V-240V 50/60Hz 0.6A
Output 12V 2.0A
Size- 236 x 179 x 19 mm
Weight- 1.2kg
Coverage Area- 2000㎡
Pass Band Ripple- ≤3dBi
I/O Impedance- 50Ω
Connector Type- N female connector
Noise Figure- ≤4dBi
Transmission Delay- ≤0.5μs
Ambient Temperature- -10ºC~60ºC
Reliability-
To the GB6993-86 standard
Electromagnetic Compatibility
To the ETS300 694-4 standard
Function
a) Power supply LED denote
b) Export power LED denote
1 x Device (ST- GD05)
1 x Indoor antenna
1 x Outdoor antenna
15 meter cable
4 x Connector
1 x User manual
