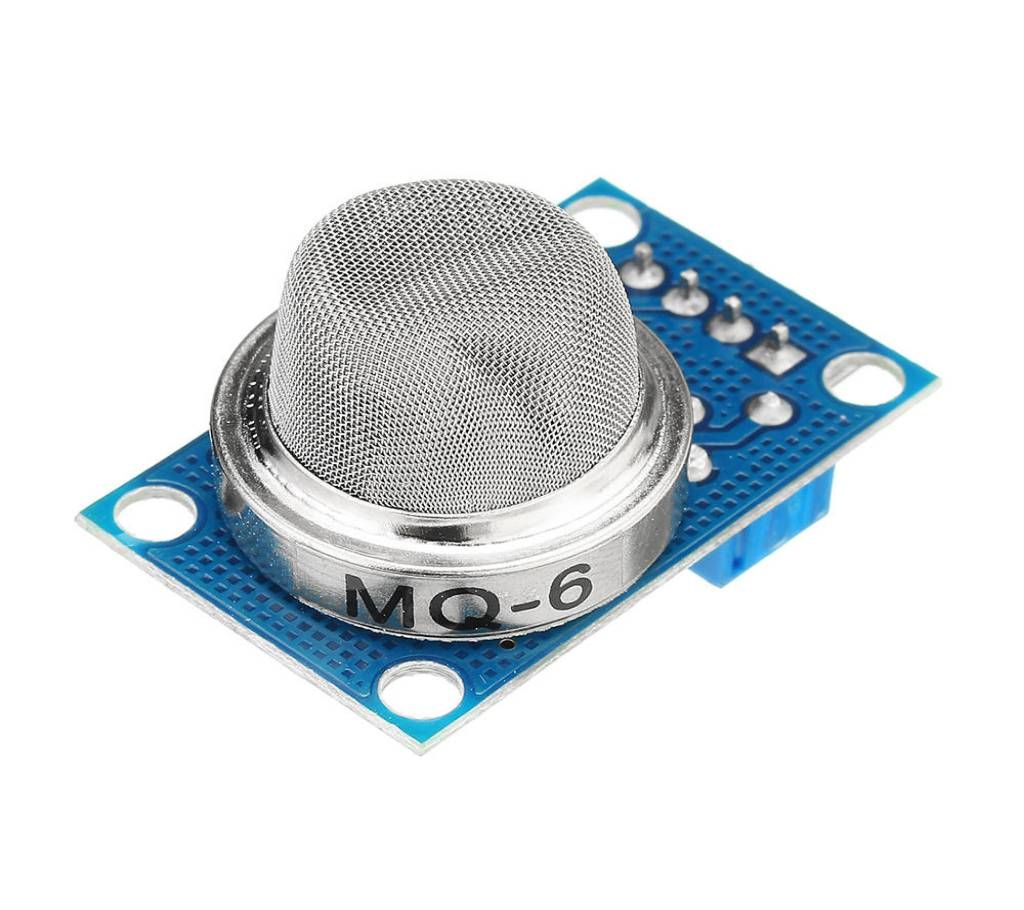

MQ6 LPG, LNG, iso-butane, propane gas
This gas sensor module is made using MQ6, a low cost semiconductor sensor which can detect LPG, LNG, iso-butane, propane gases at concentrations from 200 to 10,000ppm
The sensitive material used for this sensor is SnO2, whose conductivity is lower in clean air
It’s conductivity increases as the concentration of sensing gases increases
It has also some sensitivity to smoke and alcohol
This module provides both digital and analog outputs
Threshold level for digital output can be easily adjusted using the preset on the board
MQ6 LPG LNG iso-butane, propane gas sensor module can be easily interfaced with Microcontrollers, Arduino Boards, Raspberry Pi etc
Features Low Cost Fast Response Stable and Long Life Both Analog and Digital outputs On-board LED Indiactor Technical Data Detecting Concentration : 200 ~ 10,000 ppm Operating Temperature : -10 ~ 50°C Operating Voltage : 5V ±1 Pin Out VCC – Input Power Supply GND – Supply Ground DO – Digital Output AO – Analog Output Datasheet MQ6 LPG LNG Sensor Datasheet
