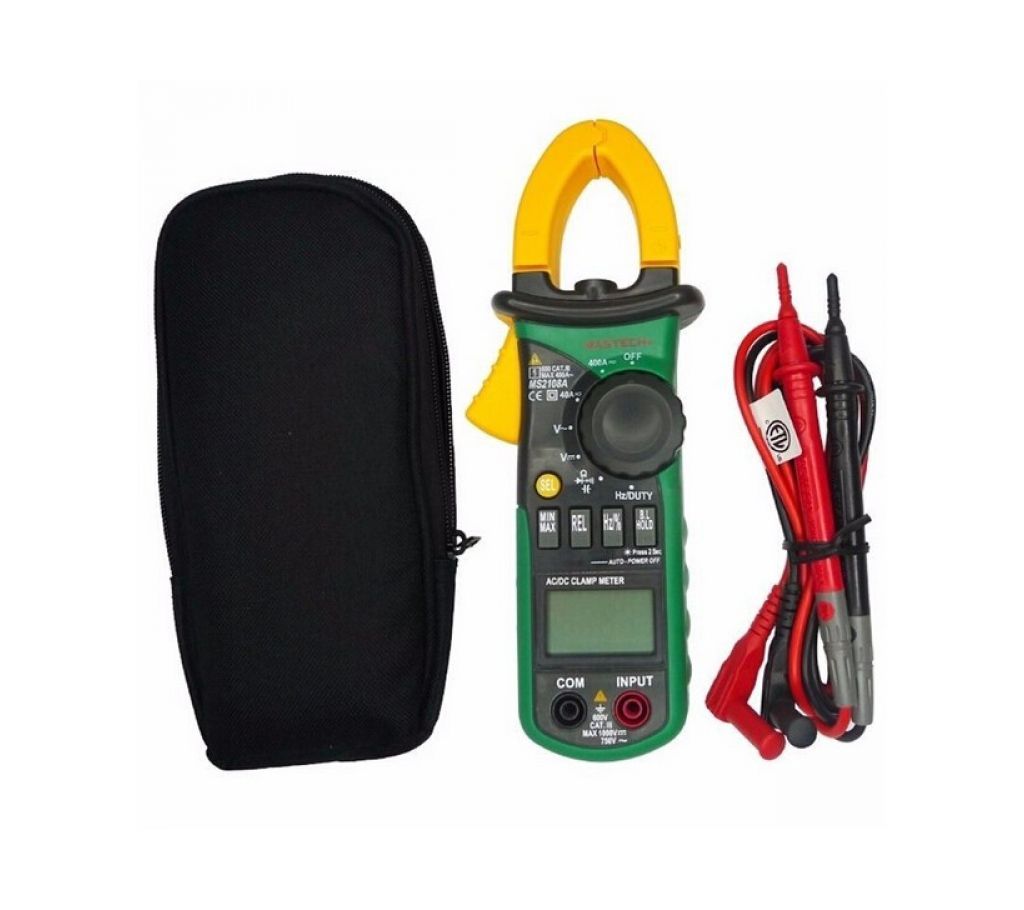

MS2108A Auto Range Digital Clamp Meter
MS2108A Auto Range ডিজিটাল ক্ল্যাম্প মিটার
Description
MS2108A Auto Range Digital Multimeter Clamp Meter for AC/DC Voltage/Current Frequency Resistance Capacity Diode multitester . This Meter is a handheld Digital Multi Meter(DMM) with multi function. This Meter is designed to meet IEC-1010 concerning eletronic measuring instrument with an overvoltage category(CAT III 600V)and pollution 2.
Features:
Auto ranging DMM.
Display: 4000 counts.
Capable of performing function: DC, AC voltage/current measurement and resistance, capacitance frequency measurement, diode test, transistor test, audible continuity test.
Data-hold function.
Back Light Front Light.
Low Battery Display.
Relative measurement.
Auto Power-OFF: If the meter is idle for 15 minutes (idle time), the meter automatically turns the power off , After auto power-off, pushing any of the push button or changing the rotary switch can turn on the meter again.
Specification:
Overload protection
DC Voltage: 400mV/4V accuracy(±0.8% of rdg ±3 digits) 40V/400V/1000V accuracy(±1.0% of rdg ±5digits)
AC Voltage: 4V/40V/400V accuracy(±0.8% of rdg ±3digits) 750V±(1.0%+5)
DC Current: 40A/400A accuracy(±2.0% of rdg ±6digits)
AC Current: 40A/400A accuracy(±2.0% of rdg ±6digits)
Resistance: 400ohm/4Kohm/40Kohm/400Kohm accuracy(±0.8% of rdg ±3digits) 4Mohm/40Mohm±(1.2%+3)
Capacitance: 400nF/4μF/40μF/400μF/4000μF accuracy(±4.0% of rdg ±5digits)
Frequency (From Clamp): 0~ 10KHz accuracy(±1.5% of rdg ±5digits)
Frequency (From Plug): 0~ 10MHz accuracy(±1.5% of rdg ±5digits)
Duty Cycle: 1%~ 99% ±3.0%
Dimensions: 250 mm * 55mm * 30mm (9.8 * 2.0 * 1.20 inch)
Weight: Approx.262g (9.2oz)(including battery)
Package information:
Package size: 24 * 10 * 5.6cm / 9.5 * 4.0 * 2.2in
Package weight: 470g / 1.0Lb
Yellow box package
Package List:
1 * AIMO Digital Multi clamp meter
1 * pair test leads
1 * English operating manual
