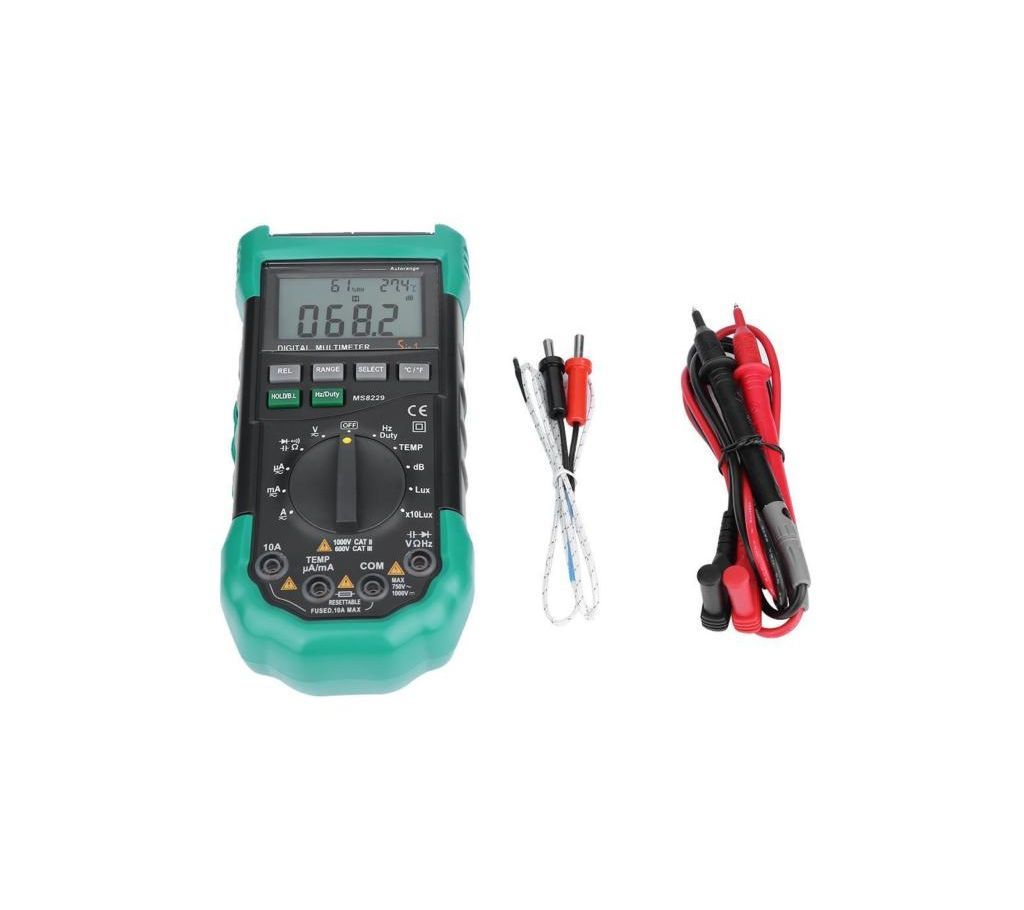

MS8229 5-in-1 Autorange Digital Multimeter
MS8229 5-in-1 Autorange ডিজিটাল মাল্টিমিটার
Description
MASTECH MS8229 5-in-1 Autorange Digital Multimeter With Alarm.
Mastech MS8229 is a unique 5-in-1 digital multimeter with specially designed features that no other meter can offer. Besides usual multimeter functions (i.e. measurements of AC and DC current, AC and DC voltage and resistance), MS8229 is used for measuring temperature, humidity, light and sound levels.
The device meets the IEC1010-1 CATII 1000V / CATIII 600V. Mastech MS8229 provides both automatic and manual measurement range selection. The meter has a big 3¾ 3999 counts LCD with blue back light. DATA HOLD function for measurement result storage. Mastech MS8229 digital multimeter can test semiconductor diodes and check line continuity. The device automatically powers off after the certain period following the last measurement.
FEATURES
Designed to meetinternational safety standard IEC61010-1 CAT II 1000V/CAT III 600V
Sound & light warning of the incorrect inserting of the input plug
SPECIFICATIONS:
Display 3999 counts
DC voltage 400 m/4/40/400/1000 V ±0.7%
AC voltage 400 m/4/40/400 V ±0.8%, 750 V ±1.0%
DC current 400/4000µ/40 m/400 mA ±1.2%, 10 A ±2.0%
AC current 400/4000 µ/40 m/400 mA ±1.5%, 10 A ±3.0%
Resistance 400/4 k/40 k/400 k/4 M/40 MΩ ±1.0%
Capacitance 50 n/500 n/5 µ/50 µ/200 µF±3.0%
Frequency 10/100/1 k/10 k/100 kHz ±2.0%
Temperature (thermocouple) -20°C ~ 1000°C±3.0% or ±2°C (0°F ~ 1800°F ±3.0% or ±4°F)
Temperature (NTC) 0°C ~ 40°C±2°C (32°F~104°F±4°F)
Light 4000/40000 Lux ±5.0%
Humidity 20% ~ 95% RH ±5.0% RH
Sound level 40 ~ 100 dB ±5 dB
Duty cycle 0.1% ~ 99.9%±3.0%
Diode test +
Continuity checking with buzzer +
Data Hold +
Auto range/Manual range +
Maximum value measurement +
Auto power off +
Back light +
Power 1.5 V (AAA) x 3
Size 195 x 92 x 55 mm
