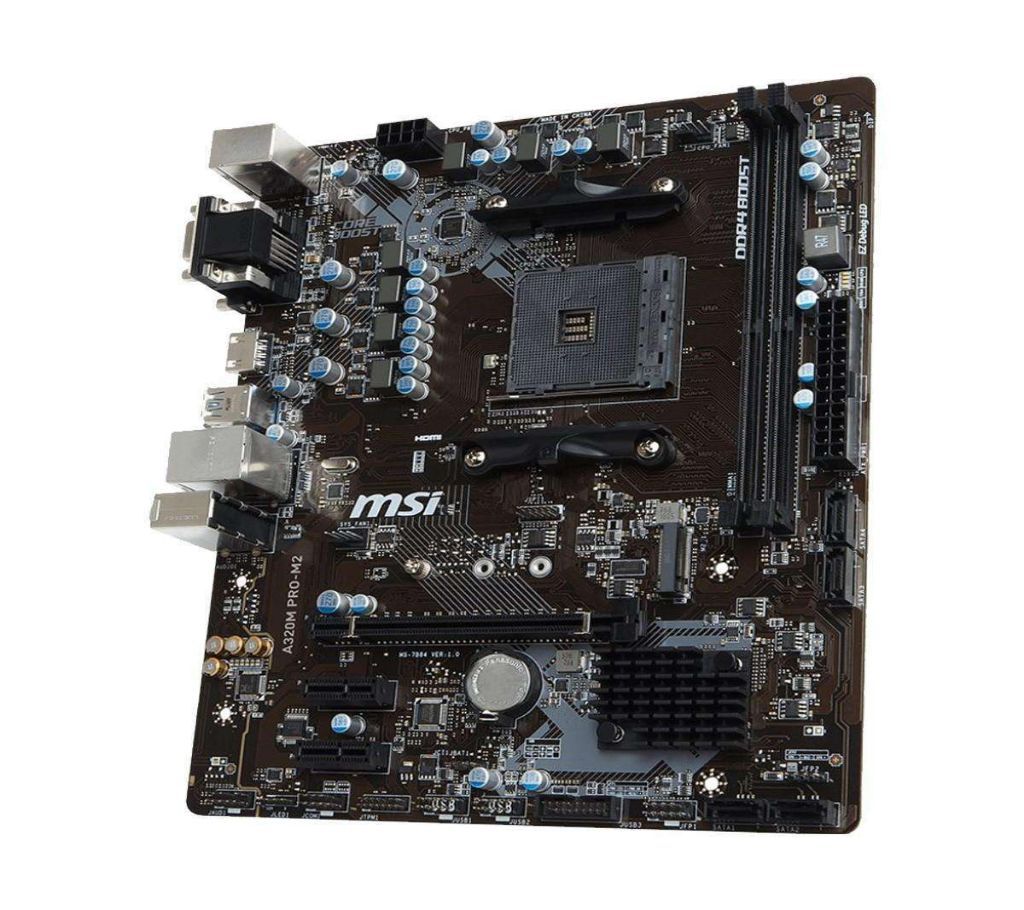

MSI A320M PRO-M2 V2 DDR4 AMD AM4 Socket Mainboard
MSI A320M PRO-M2 V2 DDR4 AMD AM4 সকেট মেইন বোর্ড
Form factor :M-ATX
Sockets: AM4
Chipset :AMD A320
Supported CPU :AMD Ryzen 1st and 2nd Generation / Ryzen with Radeon Vega Graphics Processors, Athlon with Radeon Vega Graphics and A-series / Athlon X4 Processors
RAM type :DDR4
RAM bus :1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz
RAM max :32GB
RAM slot :2
PCI Express x16 slot :1 x PCIe 3.0 x16 slot, 2 x PCIe 2.0 x1 slots
SATA port :4 x SATA
M.2 Slot :1 x M.2 (Supports PCIe 3.0 x4 or PCIe 3.0 x2 and SATA 6Gb/s 2242/ 2260 /2280 storage devices)
Optane Memory Support :No
Audio chipset :Realtek ALC887
Audio channel :7.1-Channel
DirectX supoor :12
LAN chipset :Realtek RTL8111H
LAN speed :10/100/1000Mbps
USB Port :6 x USB3.1 Gen1, 6 x USB2.0
VGA port :1
DVI port :1
HDMI port :1
Others :1 x 4-pin CPU fan connector, 1 x 4-pin system fan connector, 1 x Front panel audio connector, 1 x TPM module connector, 1 x Serial port connector, 1x LED strip connector, 1 x Clear CMOS jumper, HD Audio Connectors, 9 mounting holes
Made in China
