1.Electrical characteristics

1). The maximum output current: 2 a

2). The input voltage: 2 v ~ 24 v

3). The maximum output voltage: 28 v

4). Efficiency: >93%

2.Mechanical properties

1). product size: 36 mm * 17 mm * 14 mm

3.Method of use

The module of the IN+ and – after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage

4.Matters needing attention

1). The input voltage should not exceed the maximum input voltage

2). The peak current output current is no more than TV university

Package included:

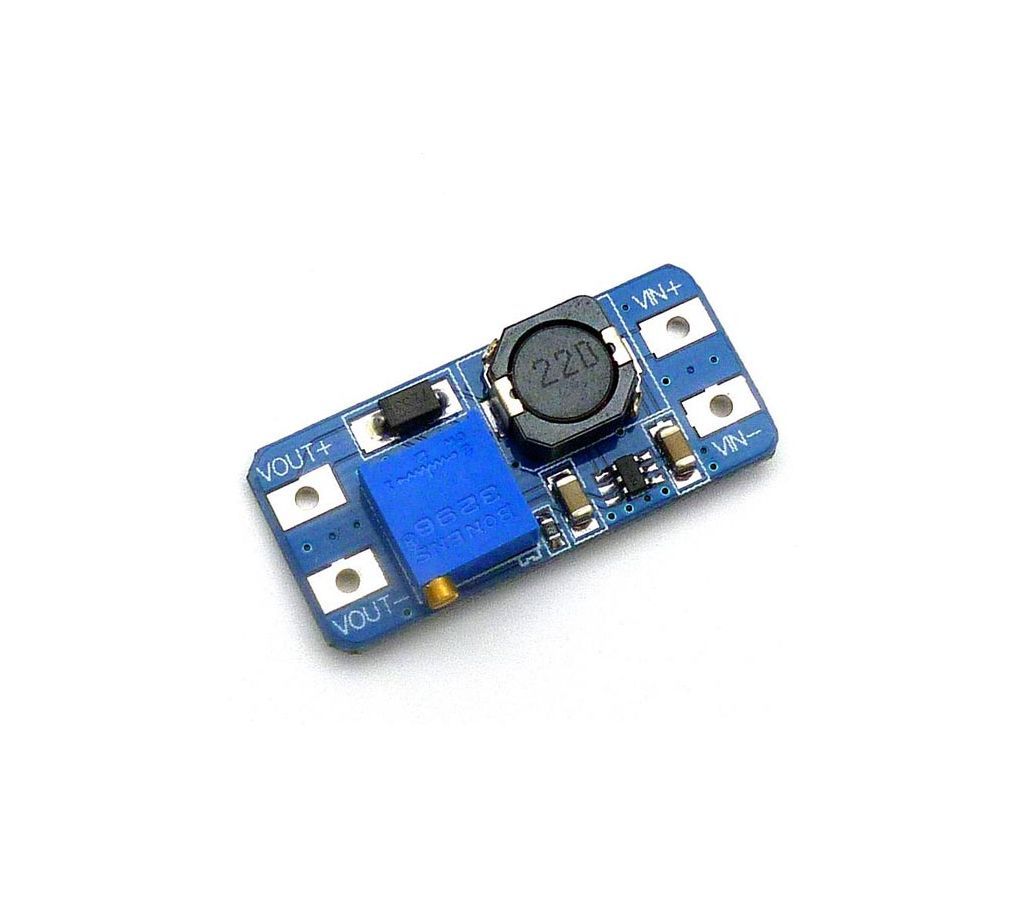

1 x MT3608 DC-DC Step Up Power Apply Module Booster Power Module MAX output 28V
