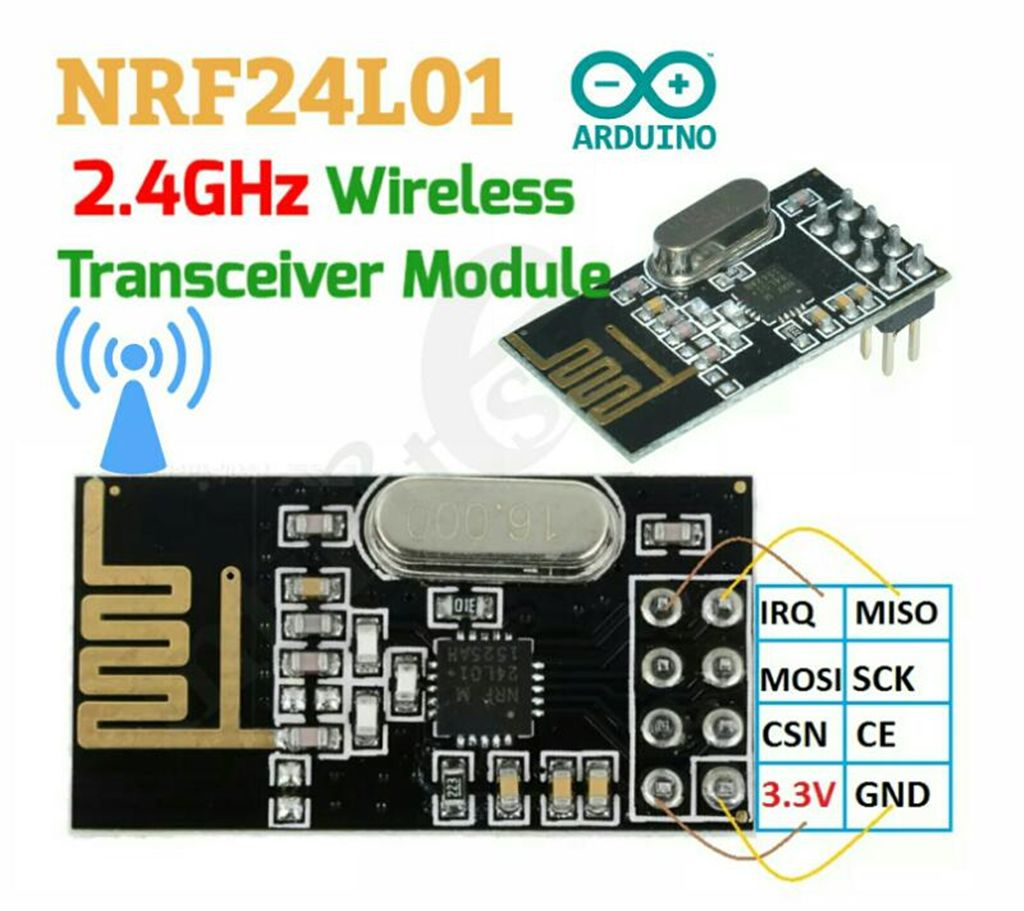

NRF24L01 Wireless Transceiver Module
NRF24L01 ওয়্যারলেস Transceiver Module
NRF24L01+ Wireless Module 2.4Ghz
Easily add it with your own MCU/ARM/PIC/AVR/STM32 system!
2Mbit/s, 1Mbit/s, 250Kbit/s, three selectable transmission rate.
2 Mbit/s make high-quality VoIP is possible.
Only require an external inductor in the antenna matching
5V tolerance level inputs.
Improved ShockBurst and the serial interface can be easy to connect with a variety of low-cost MCU.
There si no need SPI interface with the MCU.
Received in the rate of 2Mbit/s, the peak current is 12.5mA.
When the rate of 2Mbit/s @ 0dBm output,the peak current is 11mA.
Power-down mode, power consumption is 400nA.
Voltage regulator on board
Built-in 2.4GHz antenna,support up to six channels of data reception.
Low operating voltage: 1.9-3.6V
