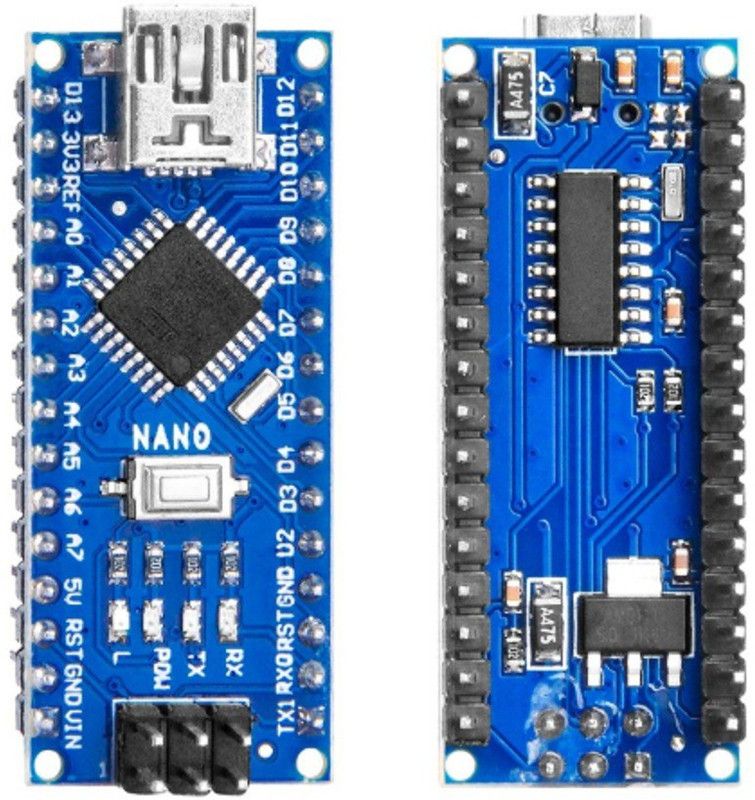

OLatus Arduino Nano V3.0 ATmega328P CH340 USB driver compatible Micro Controller Board Electronic Hobby Kit
In The Box
1 x Arduino Nano V3.0: 1 x Arduino Nano V3.0
General
brand: OLatus
Model Number: Arduino Nano V3.0 ATmega328P CH340 USB driver compatible
Type: Micro Controller Board
ROHS Complaint: Yes
Material: Plastic
Dimensions
Width: 0.75 cm
Height: 0.65 cm
Weight: 170
Power Features
Battery Type: NA
No Of Batteries: NA
Battery Size: NA
Power Source: DC, Battery
Other Power Features: 20 digital input/output port RX and TX, D2 ~ D13, A0 ~ A5, 8 analog input port A0 ~ A7, 1 to the TTL level a serial port to send and receive port RX/TX, 6 PWM port, D3, D5, D6, D9, D10, D11, Using Atmega328P microcontroller, Support serial download and ISP download, Support external 3.3V ~ 5V dc power supply, Support the Li-ion polymer batteries (5volt) while direct connect Vcc Pin, Flash Memory 32 KB of which 2 KB used by bootloader. SRAM 2 KB, Clock Speed 16 MHz, Support ISP download, EEPROM 1 KB, DC Current per I/O Pins 40 mA (I/O Pins), Standard 0.1ÃÂâÃÂ?ÃÂ? spacing DIP (breadboard friendly)., ICSP header for direct program download., Power OK blue LED on the bottom.
