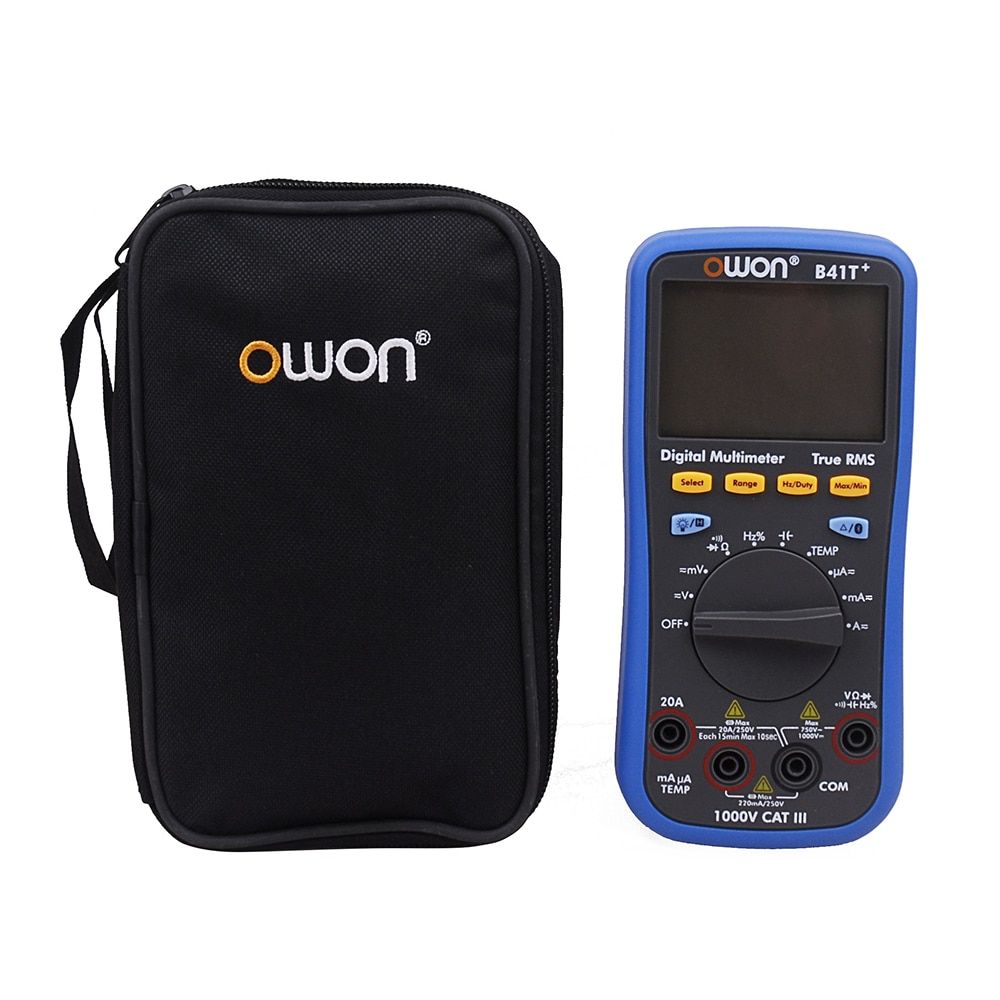

OWON B41T+ 4 1/2 Digital Multimeter With Bluetooth True RMS Backlight Test Meter
- DIY Supplies:ELECTRICAL
- Certification:None
- Origin:CN(Origin)
- Model Number:Owon B41T+
- AC Current:220uA/2200uA/22mA/220mA/20A
- AC Voltage:220mV/2.2V/22V/220V/750V
- Measuring Resistance Range:220Ohm/2.2kOhm//22kOhm/220kOhm/2.2kOhm/22MOhm/220MOhm
- Operating Mode:M
- Display Type:Digital Display
- DC Current:220uA/2200uA/22mA/220mA/20A
- DC Voltage:220mV/2.2V/22V/220V/1000V
- Measuring Capacitance Range:22nF/220nF/2.2uF/22uF/220uF/2.2mF
- Dimensions:85*85*30(mm)
- Operating Temperature:0 - 40 ℃
- Frequency:22Hz/220Hz/22kHz/220kHz/22Hz/2.2MHz/22MHz
- Shift Rate:3 times/s
- Display:21999 count
- Duty Ratio:5%-94.9%(typical value: Vrms=1V, f=1kHz 0.1%-99.9%(>=1kHz)
