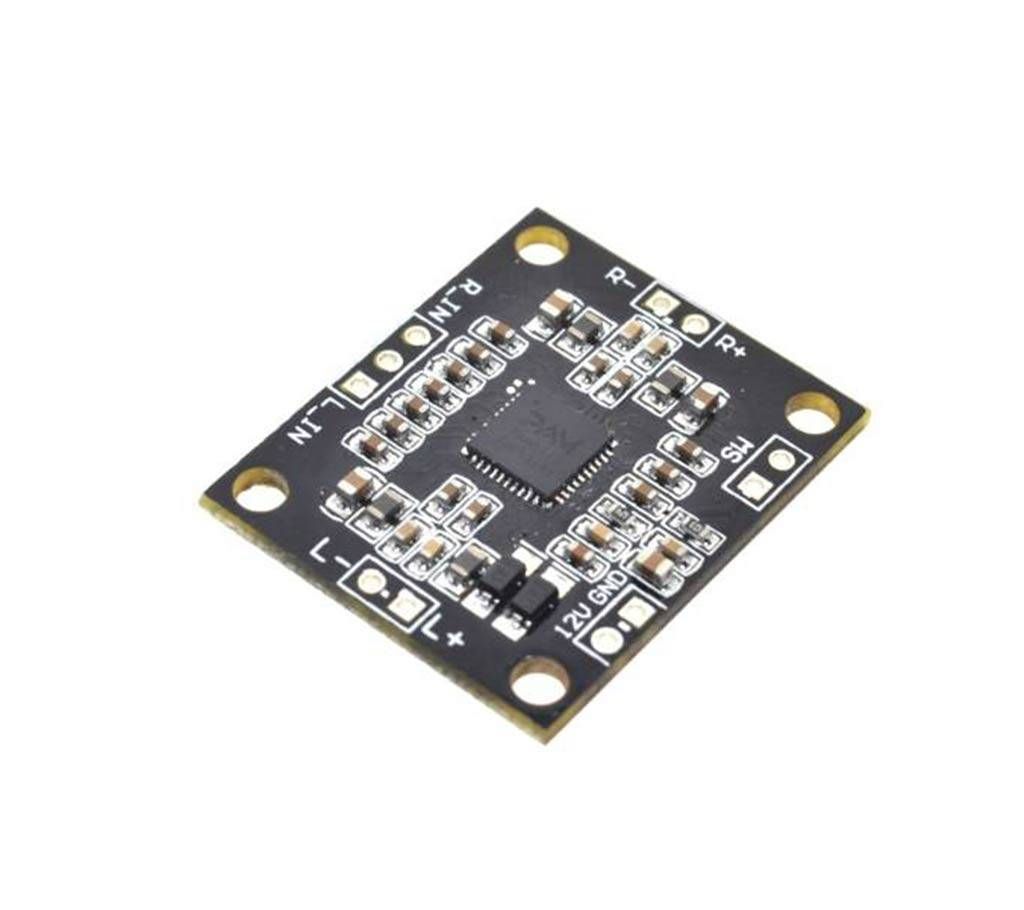

PAM8610 10W Stereo Audio Amplifier module
The PAM8610/HCMODU0086 is a 10W (per channel) stereo Class-D audio amplifier Module which offers low THD+N (0.1%), low EMI, and good PSRR thus high-quality sound reproduction. Volume is set at maximum gain 32dB. The PAM8610 module runs off of a 7V to 15V (12V recommended). 0.1" pads on the module provides interface to power, stereo audio input, mute, and left and right speakers.
10W @ 10%THD/Channel Output into a 8Ω Load at 13V
Low Noise: -90dB
Over 90% Efficiency
Shutdown/Mute/Fade Function
Over Current , Thermal and Short-Circuit Protection
Low THD+N
Low Quiescent Current
Pop Noise Suppression
Small Package Outline
