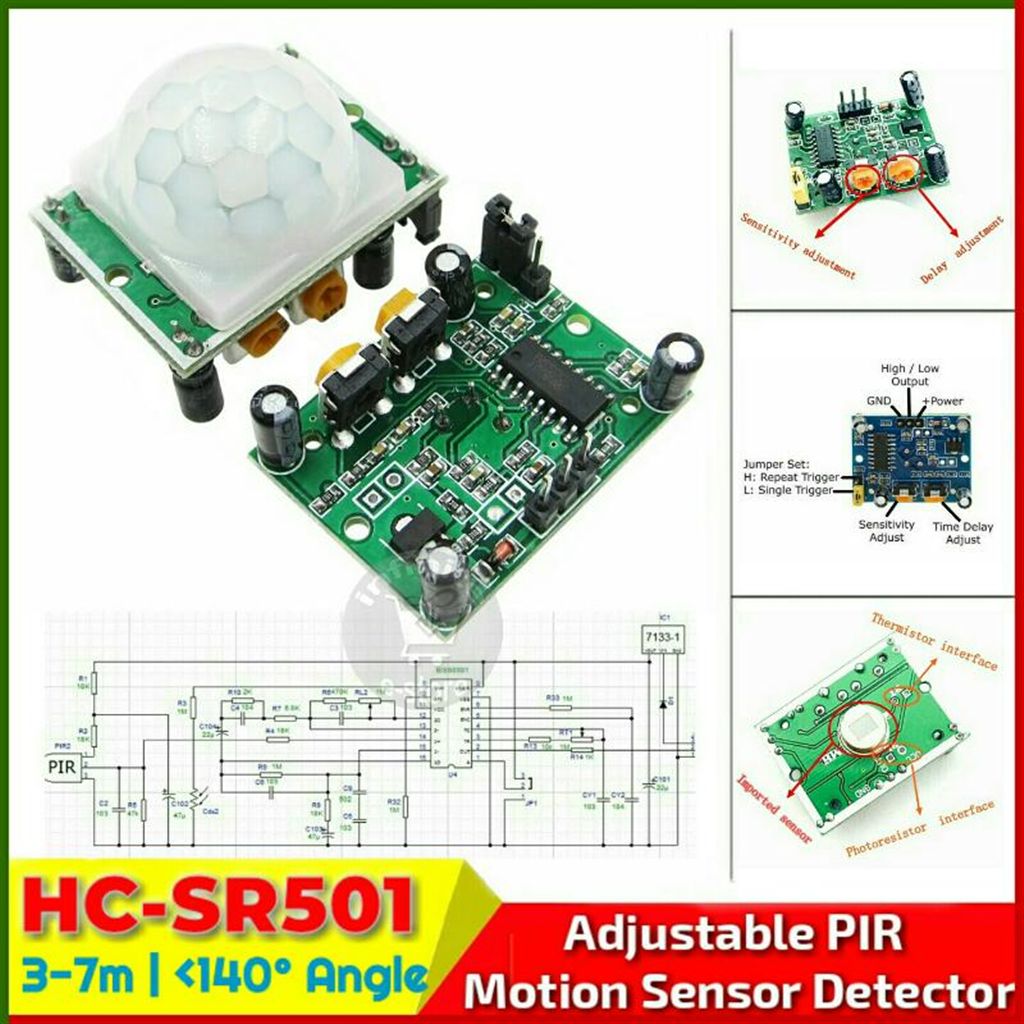

PIR Motion Sensor Module
Tutorial: https://youtu.be/YSI1PdSLbt0
Model: HC-SR501
Working voltage range:DC 4.8V-20V
Static current:<50uA
Level of output: high 3.3V & Low 0V
Triggered way:L not repeatable triggered/H repeatable triggered
Delay time:0.5-200s(adjustable)
Blocking time:2.5s(default)
Circuit board dimension:32mm*24mm
Angle of induction:<100 degree Cone Angle
Induction lens size: Diameter: 23mm (default)
