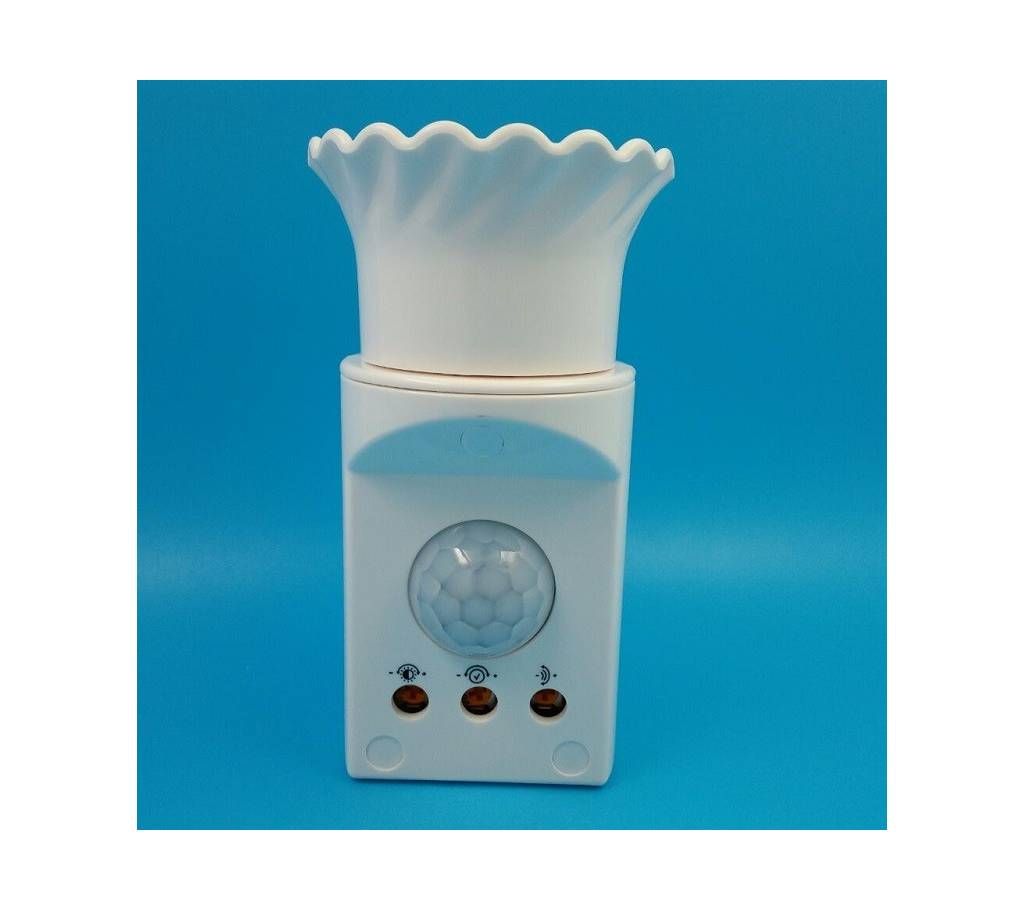

Pir sensor human body infrared motion switch plug
Pir সেন্সর হিউম্যান বডি ইনফারেড মোশন সুইচ প্লাগ
1. Features:
Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically. (light on), when they leave light will delay and shut down automatically.
1,Super saving electricity, power consumption0.08 degrees per year
2,Non-contact, simple installation
3,Sensitivity adjustable( can bright during the day)
4,Delay time adjustable
5,Adjustable sensing range
6,Strong anti-jamming capacity, more safe and reliable
Components have been doing rigorous testing and screening, before delivery we have been doing aging test, please be assured to use
2. Specification:
Working power:AC170V~250V,50/60HZ
Load power:LED≤30W,Energy saving≤80W,Incandescent≤100W
Standby power:0.0088W
Delay time:10~300second
illumination:5LUX~5000LUX
Induction distance:2~12m
Sensor angle:110~140degree
3. Application
Corridor,toilet,basement, warehouse,garage ,and other places of automatic lighting, (Suitable f
4. Attention
1,To turn off power when installation, must be installed by professional
2,This switch can work normally after 45 seconds when electricity, it is infrared sensor preheat time
3,Do not overload to use.
