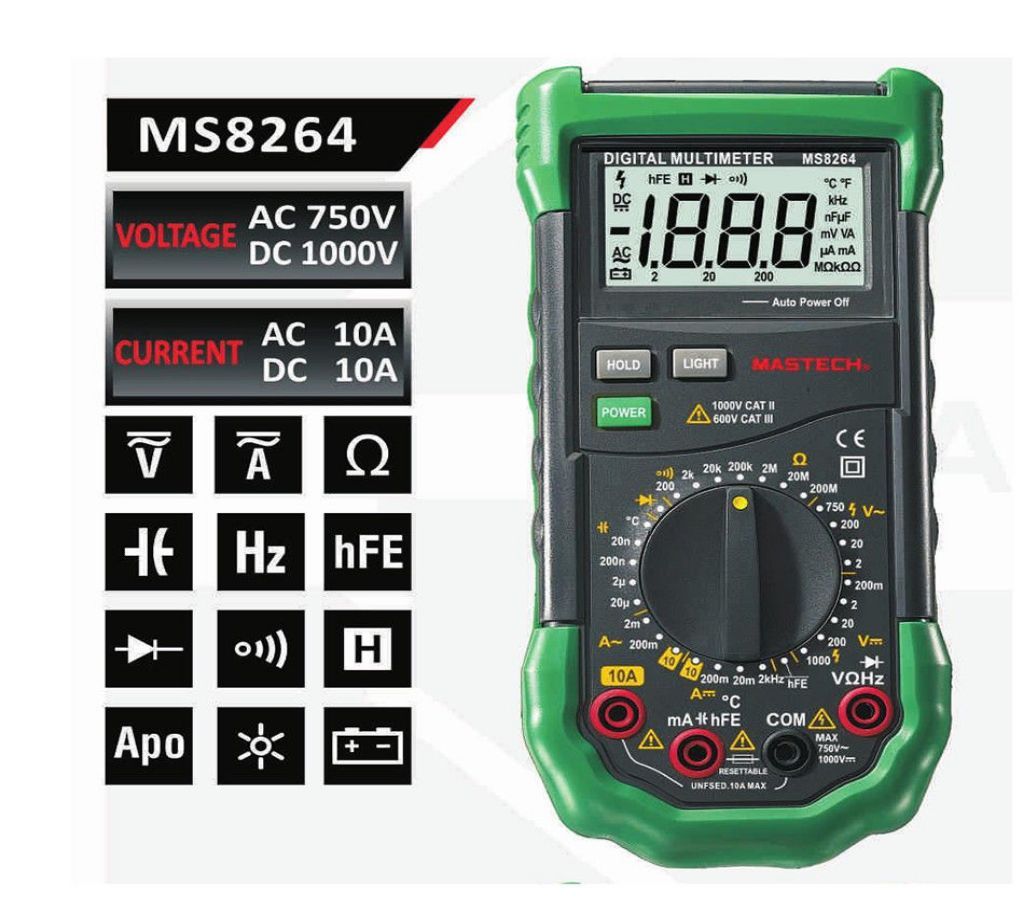

Professional Digital Multimeter Auto Range Electrical Tester MS8264 Multimeter
Professional Digital Multimeter Auto Range Electrical Tester MS8264 Multimiter
Description:
This MS8264 is a fully featured digital multimeter. It is capable of most standard functions including AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Temperature and more. It's also packed with many nice features, such as back light, data hold, reset table fuse. No matter you are a professional or just a DIYer, this is a great and affordable tool for your daily use.
Features:
Auto Power Off Function
Large 2000 Counts LCD Display
Data Hold and Display Back Light
Safety Rating up to CAT.II 1000V / CAT.III 600V
Transistor (hFE) Check, Diode and Continuity Test
Type-K thermocouple contact temperature measurement
Tests AC/DC Voltage and Current, Resistance, Frequency and Capacitance
Specifications:
Model: MS8264
hFE: 1~1000
Frequency: 20kHz±1.5%
Capacitance: 20n/200n/2µ/20µF±4.0%
AC Voltage: 2V/20V/200V±0.8%, 750V±1.2%
AC Current: 2mA±1.0%, 200mA±1.8%, 10A±3.0%
DC Current: 20mA±0.8%, 200mA±1.5%, 10A±2.0%
DC Voltage: 200m/2V/20V/200V±0.5%, 1000V±0.8%
Resistance: 200/2k/20k/200k/2MO±0.8%, 20MO±1.0%, 200MO±5.0%
General Specifications:
Dimension: 195*92*55mm
Product Weight: Approach 320g / 0.6lb
Package Weight: Approach 560g / 1.2lb
Power Supply: 9V 6F22*1 (NOT included)
Package Size: 21*12.5*6cm / 8.2* 5*2.3inch
