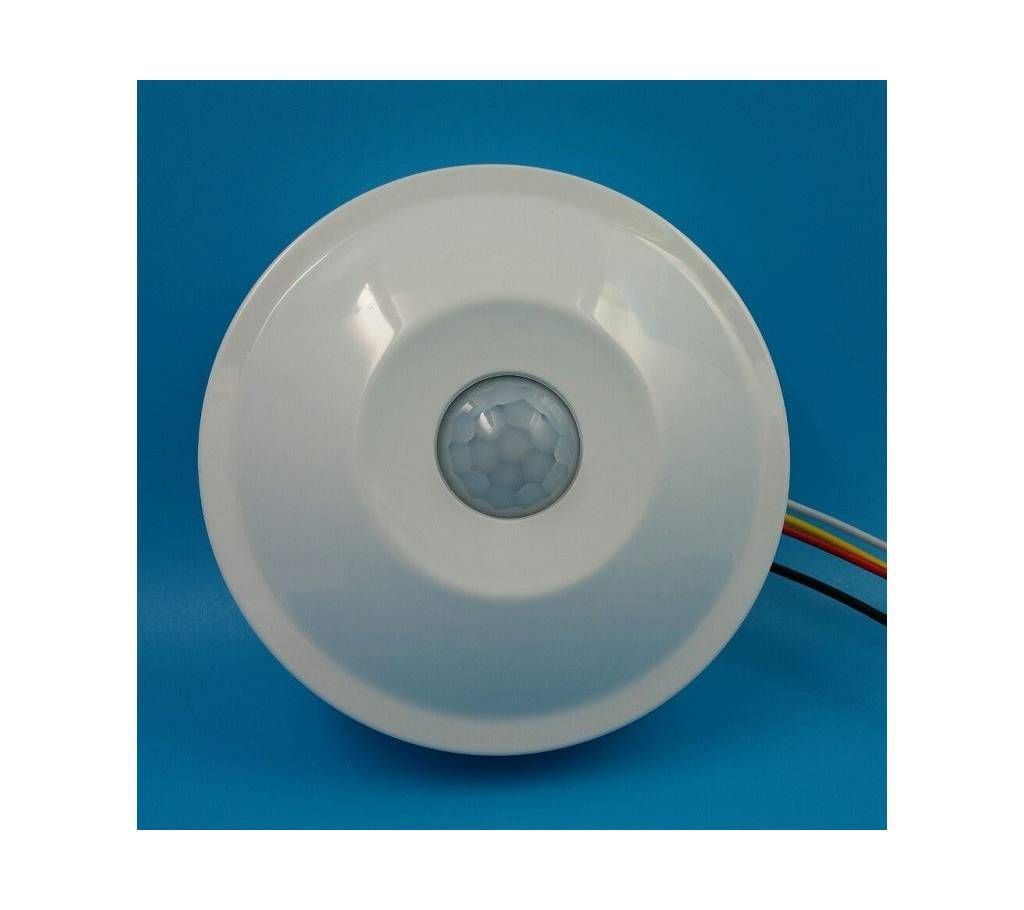

Round ceiling pir sensor body motion induction switch
Round ceiling pir সেস্নর বডি মোশন ইন্ডাকশন সুইচ
The induction switch type suction a top
Model:JL-016B
Welcome to use our products, our company all products are through strict test and aging test, the circuit is stable and reliable in quality
Feature:
The product adopts good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from human as control signal source, it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widel. Suitable for the warehouse, garage, workshop, corridor, stair, absorb dome light.
Specification:
Size: 94 mm * 36 mm
Working voltage:AC170-250V
Sensing method:Passive infrared pyroelectric
Static Power:0.05W
delay time:15-300S adjustable
Output Mode:relay
Illuminance:default 5LUX,5-5000 adjustable,Can also work during the day Induction distance is adjustable (Other Choice):5-8M(adjustable 2-10M)
detection angle:360 degree
load range:All the lamps and lanterns, exhaust fan
power:bulb 500W,energy saving lamp,LED bulb 100W
Operating Temperature:-20℃—+50℃
