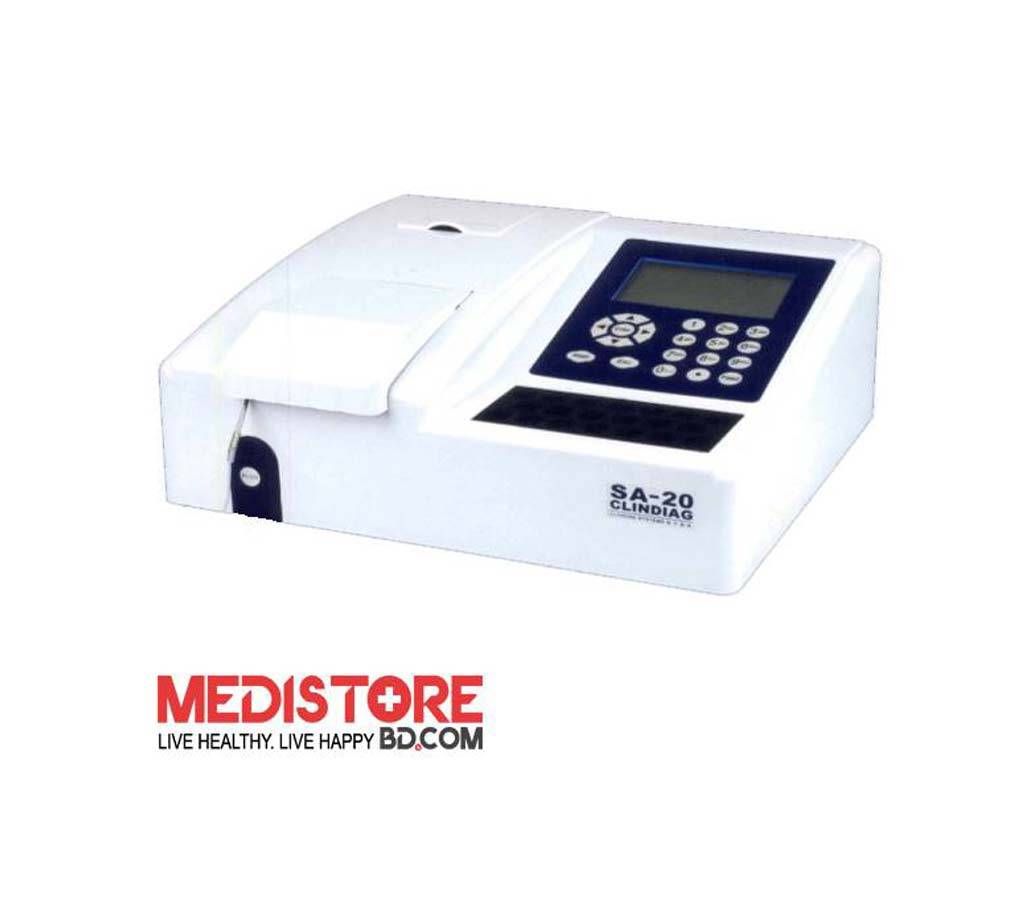

SA-20 Semi Automatic Biochemistry Analyzer
Brand: CLINDIAG
Model: SA-20
Origin: Belgium
Warranty: 2Yrs
Operation: semi-automatic
Configuration: bench-top
SA-20 Semi Automatic Biochemistry Analyzer
End point, kinetic, fixed time, mutistandard, bichromatic etc
Filter wavelengths: 7standard filters from 340 to 800nm, 2 more open filter positions, others are available on request
With 20 incubating positions
Large memory to store 200 test programs and 1000 testing results
Excellent Q.C function Q.C. chart can be stored, displayed and printed.
Technical Specifications
Reading Cuvette: Both through cell and direct reading cuvette
Incubating Positions: 20 incubation positions
Photometric System:
Light Source: 6V 10W long-life halogen lamp
Filters: 7standard filters from 340 to 800nm, 2 more open filter positions; ±2 nm pass-band
Wavelength Accuracy: ±2 nm
Measuring System: Measuring Range: 0-3.500 O.D
Photometric Linearity: ±2% from 0 to 2.000 O.D.
Photometric Accuracy: ±2% from 0 to 2.000 O.D.
Drift: less than 0.001 O.D.
Carry Over: ≤1%
Incubator Temperature control: 25degree.centigrade ,30degree.centigrade ,37degree.centigrade, Precision:±0.1degree.centigrade
Reagent Volume: 200-500 ul
Printer: Built-in thermal printer, 57mm width paper
Power Supply: 110V 60HZ / 220V 50HZ, 60VA
Dimensions: 34cm*38cm*18cm
Weight: 8.5kg
