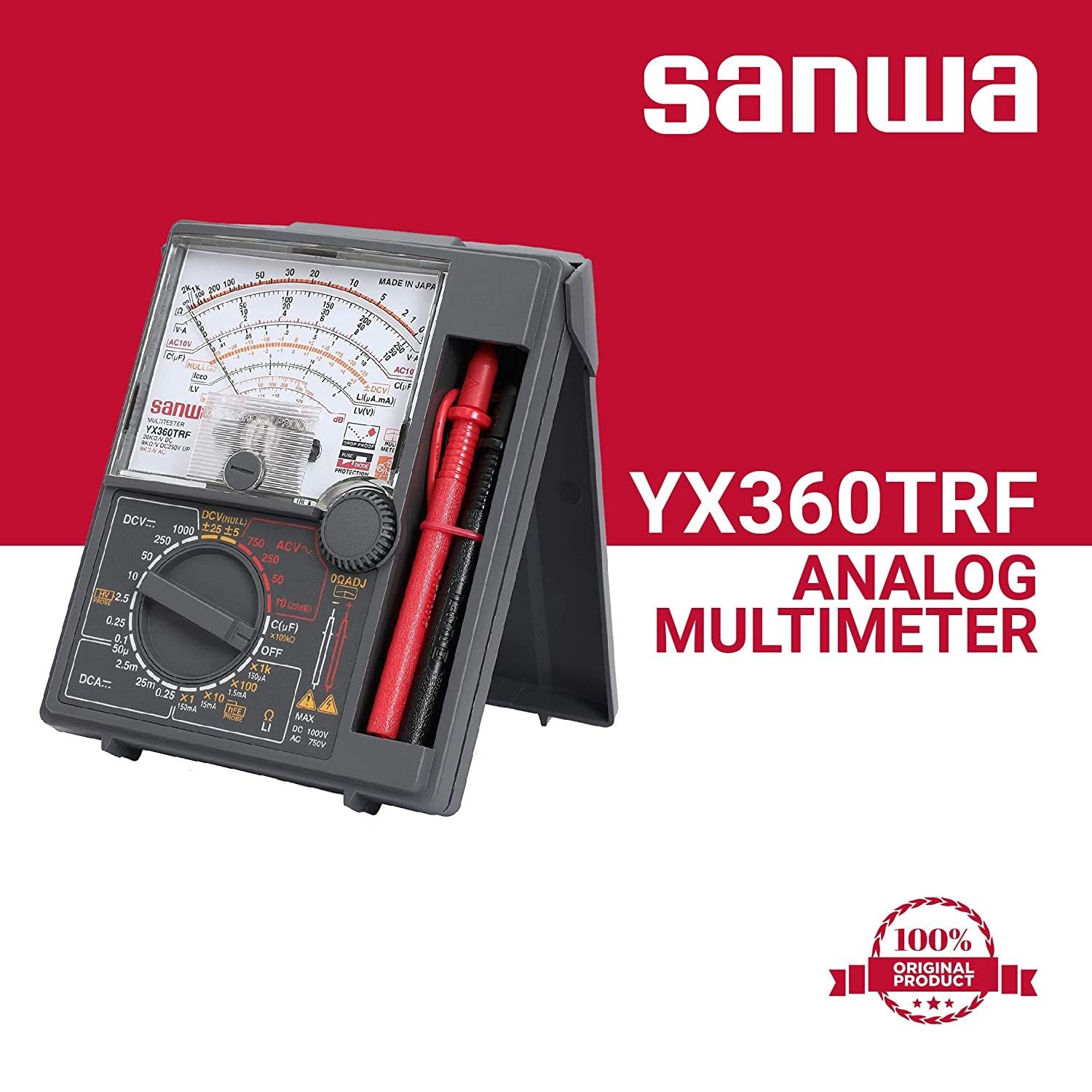

Sanwa YX360TRF Analog Multimeter Case and instrument in one body, that brings you a convenience to carry and store
- Brand: Sanwa
- Model: YX360TRF
- Drop shock proof meter
- Null (zero center) meter ±5 / ±25 in DCV
- High resistance up to 200M with low voltage
- Protective body cover
- Capacitance, dB, Li measurement
- Bandwidth : 30100kHz (AC10V)
- DCV: 0.1（20kΩ/V) 0.25/2.5/10/50（20kΩ/V)/250/1000V（9kΩ/V)
- ACV: 10/50/250/750（9kΩ/V)
- DCA: 50μ/2.5m/25m/0.25A
- Resistance: 2k/20k/200k/2MΩ (x1/x10/x100/x1k) 200MΩ (x100k)
- Capacitance: 10μF
- dB: -10dB～+22dB (for 10VAC) ～+62dB
- Load current (LI): 0-150m/15m/1.5m/150μ/1.5μA
- DC high voltage: DC25kV (optional probe "HV-10T" is necessary)
- hFE: 1000 at x10 range (optional probe "HFE-6T" is necessary)
