Servo Motor SG-5010
সার্ভো মটর SG-5010

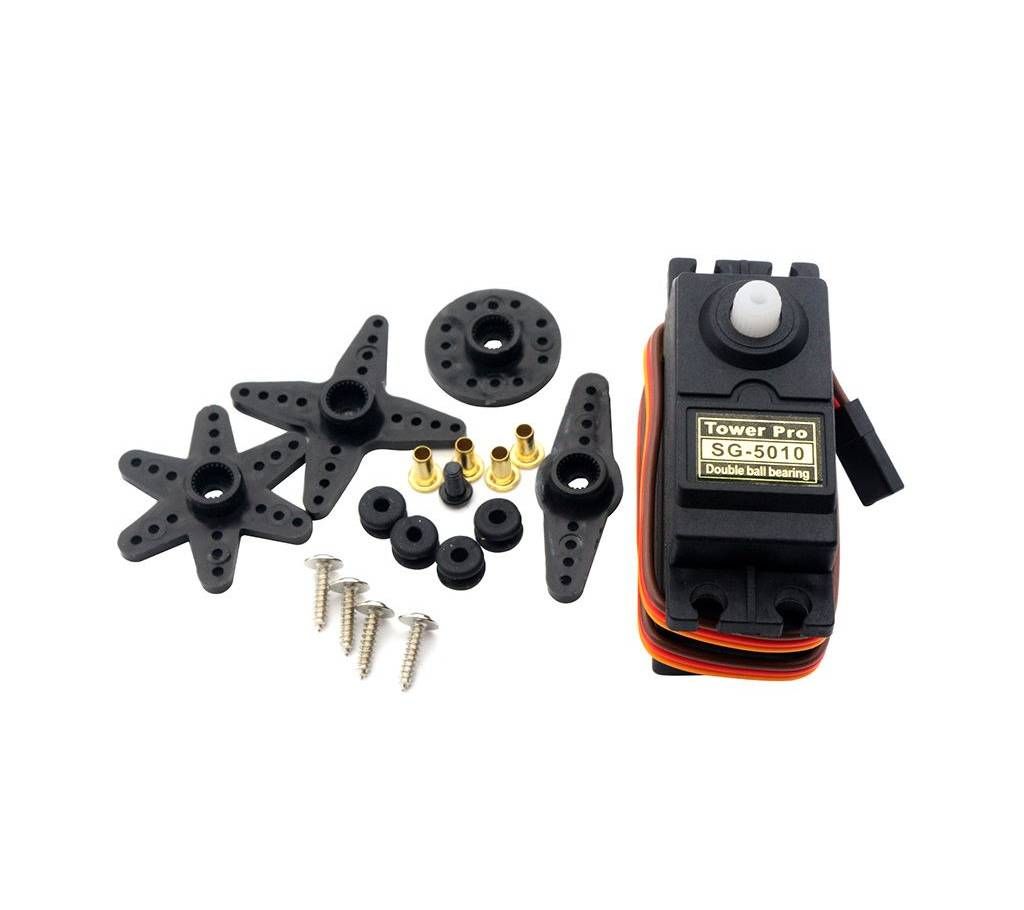

TowerPro SG5010 is a high quality but really low-cost servo for all your mechatronic needs. It comes with a 3-pin power and control cable, even a dozen of hardware as shown. With this two servo and Bracket for servo, you can build a 2 degrees freedom Servo mount assembly.
This high quality standard sized servo is good for steering your robot wheels or pick and place robot. It rotates at approximately 180 degrees (90 degrees in left and right direction). You can also use it for any application you need that needs moving an object (or anything possible you can think). The pack is complete with all the accessories you need to start.
Operating Voltage: 4.8- 6.0VCD
Operating Speed: 0.20sec/60degree (4.8V), 0.16sec/60degree (6.0V)
Stall Torque: 5.2kg*cm (4.8V), 6.5kg*cm (6.0V)
Temperature Range: -20°C ~60°C
Dead Band Width: 4ms
Dimension: 41x20x38mm
Weight: 41g
Cable in Length: 30cm
