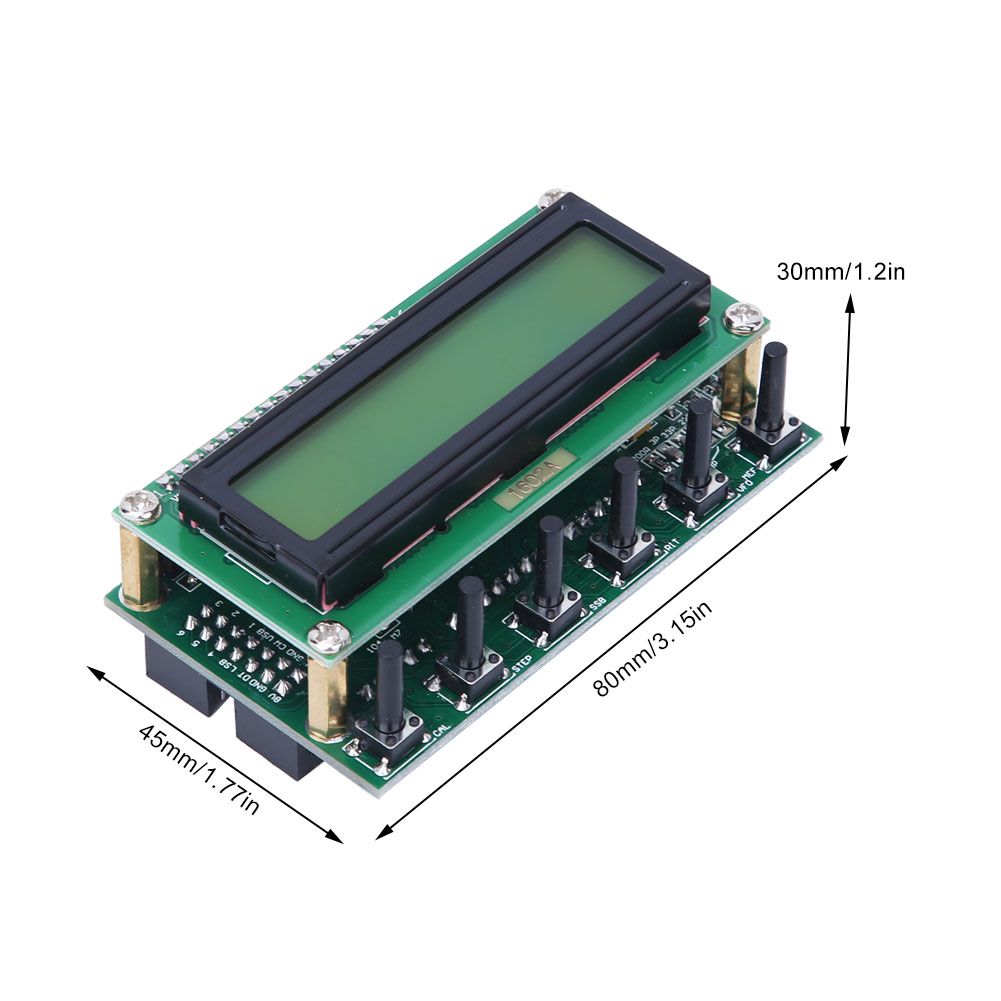

Signal Generator Module AD9850 DDS DC 8V-9V 6 Band 0-55MHz Frequency LCD Digital
- The 12V input voltage can only be used for short-term testing, otherwise it will cause the board to heat up.
- If powered by the motherboard, the DDS does not require a separate power supply.
- 5p/6p connect to encoder as per photo. 7p of the middle connects to digital matrices input. 14p (8V GND) is 8V power supply from main board.
- The generator has a 78L05 voltage regulator. When the input current is 200MA, the input voltage of 8-9V will be the ideal voltage.
- Support 0-55MHz continuous adjustment, the frequency is 1Hz.
