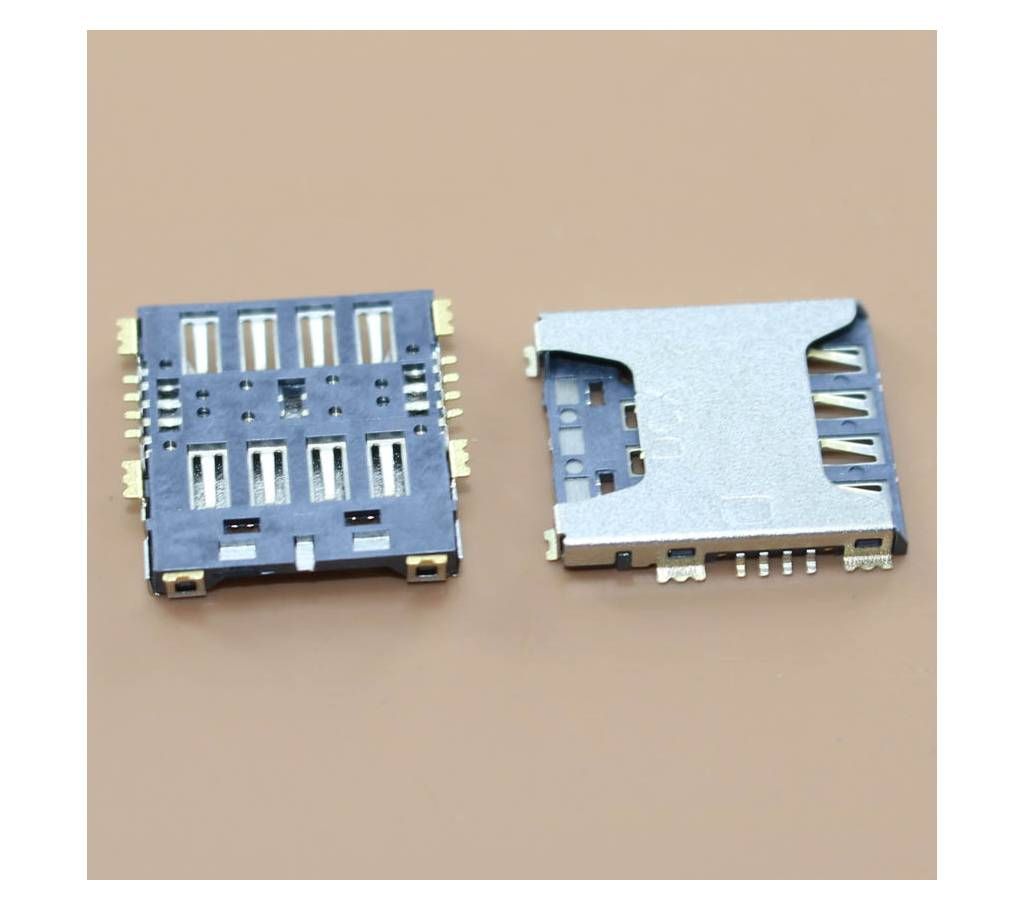

SIM Card Socket
SIM কার্ড সকেট
Cards Support: Single Card
Rated voltage: 100V AC
Rated current: 0.5A Max
Contact resistance: 40MΩ Max
Insulation resistance: 1000MΩ Min
Withstand voltage: AC 500V (50Hz for 1min)
Practical life: 5, 000 Cycles
Insertion force: 13.8N Max
Extraction force: 1N Min
Practical temperature range: -20ºC -- +60ºC
Flammability: UL94V-0
