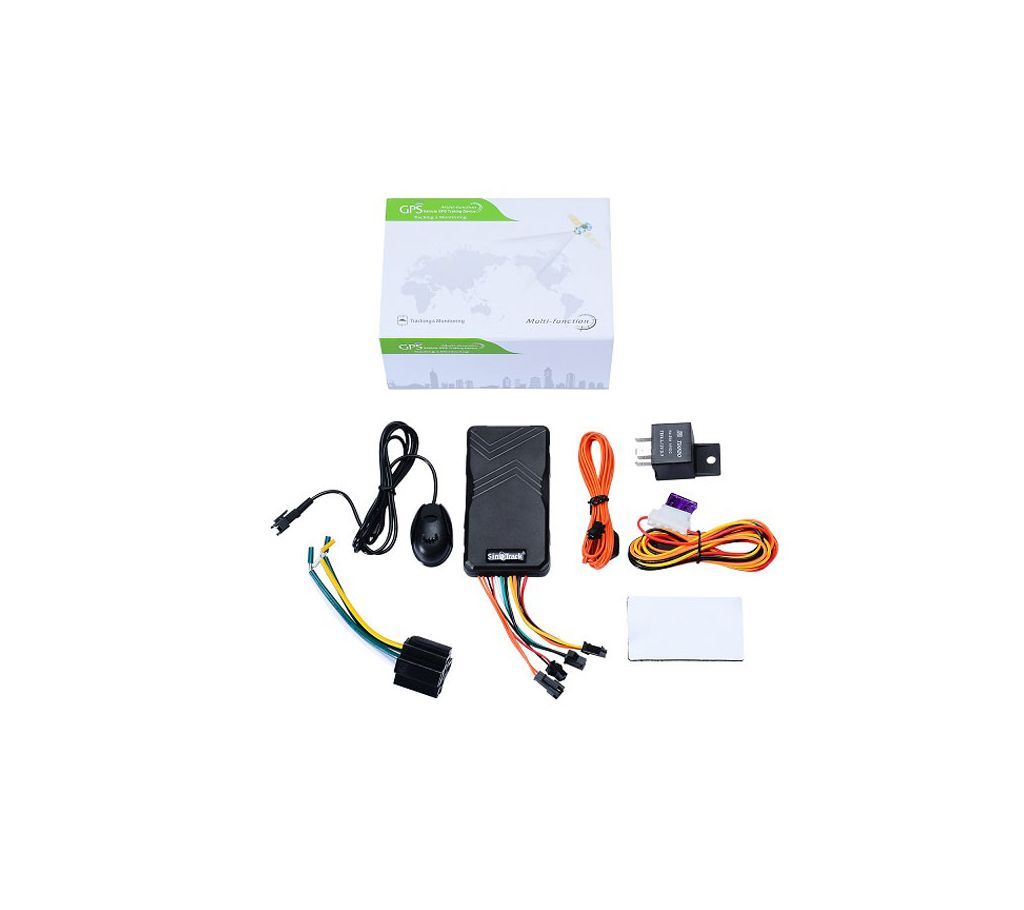

SinoTrack ST-906 Vehicle Tracking Chips Quad Band Web Based Tracking System
Model ST-906
Application Special for Motorbike,applicable to business or private cars, car renting company, logistics, and so on
Weight 45g
Unit size 95mm(length) * 48mm(width) * 15mm(height)
Standard accessory power cable / relay / MIC / SOS button
Specification
Operating temperature -20°C ~ 70°C
Storage temperature -20°C ~ 70°C
Operating humidity 20% ~ 80%
Storage humidity 20% ~ 90%
Input voltage DC9 ~ 80V
Working current Around 60mA(12vDC), around 35mA(24vDC)
GSM Module Four-Band GSM850/900/1800/1900(MHz)
GPRS connectivity GPRS multi-slot class 10, GPRS mobile station class B
GPS Module Ubox 7020
Position accuracy 10 meters, 2D RMS
Tracking sensitivity - 159dBm
Acquisition sensitivity - 144dBm
acquisition Hot start 1s, warm start 30s,cold start 32s
Indicator LED 3colors indicator: Power, GPS, GSM
Hardware Features
Positioning Location tracking via SMS/GPRS (TCP/UDP):
SMS location racking.
signal real time location tracking.
GPRS location tracking via time interval.
Wiretapping set authorized phone number and with external MIC:
Use authorized phone number to call the tracker, after 5rings, the caller can listen to vehicle inside voice.
Unauthorized number calling, tracker will not be monitored.
Alarm
main power cut off alarm.
shock alarm.
SOS.
Remotely control fuel/power
remotely disable and enable fuel and power.
Product feature
Small, slim, easy to install.
Built-in switching power, wide voltage input range.
Can be powered by cigarette lighter or vehicle battery power.
Special features (work with our tracking software)
Monitor
get real time position and alarms notice.
get last position.
position data includes: terminal ID, time, address, position validity, alarm( over-speed, SOS), vehicle status( engine, door, shock), speed, mileage, direction, GSM signal, GPS signal, Longitude, Latitude.
Mileage
mileage statistics, can synchronize initial mileage.
working time and non-working time driving mileage statistics.
G
