STM32 System Development Board
STM32 সিস্টেম ডেভলপমেন্ট বোর্ড

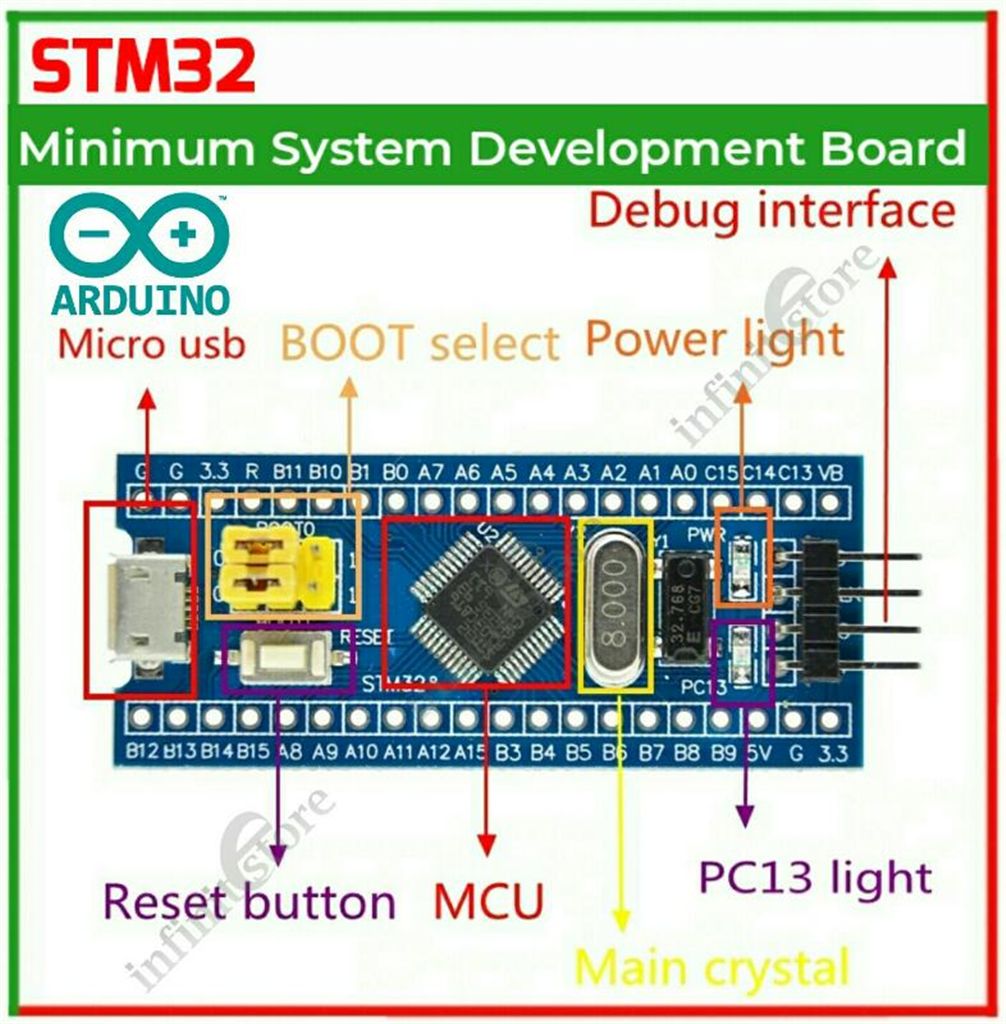

STM32F103C8T6 Minimum System Development Board
Number of pins: 48
Kernel: Cortex-M3
Operating frequency: 72MHz
Storage resources: 64K Byte Flash
SRAM: 20KByte
Interface Resources: 2x SPI, 3x USART, 2x I2C, 1x CAN, 37x I / O ports,
Analog-to-digital conversion: 2x ADC (12-bit / 16-channel)
Timers: 3 general timers and 1 advanced timer
Debug Download: Support JTAG / SWD debug interface to download, support for IAP.
RT9193: 3.3V regulator chip, the maximum output of 300mA.
