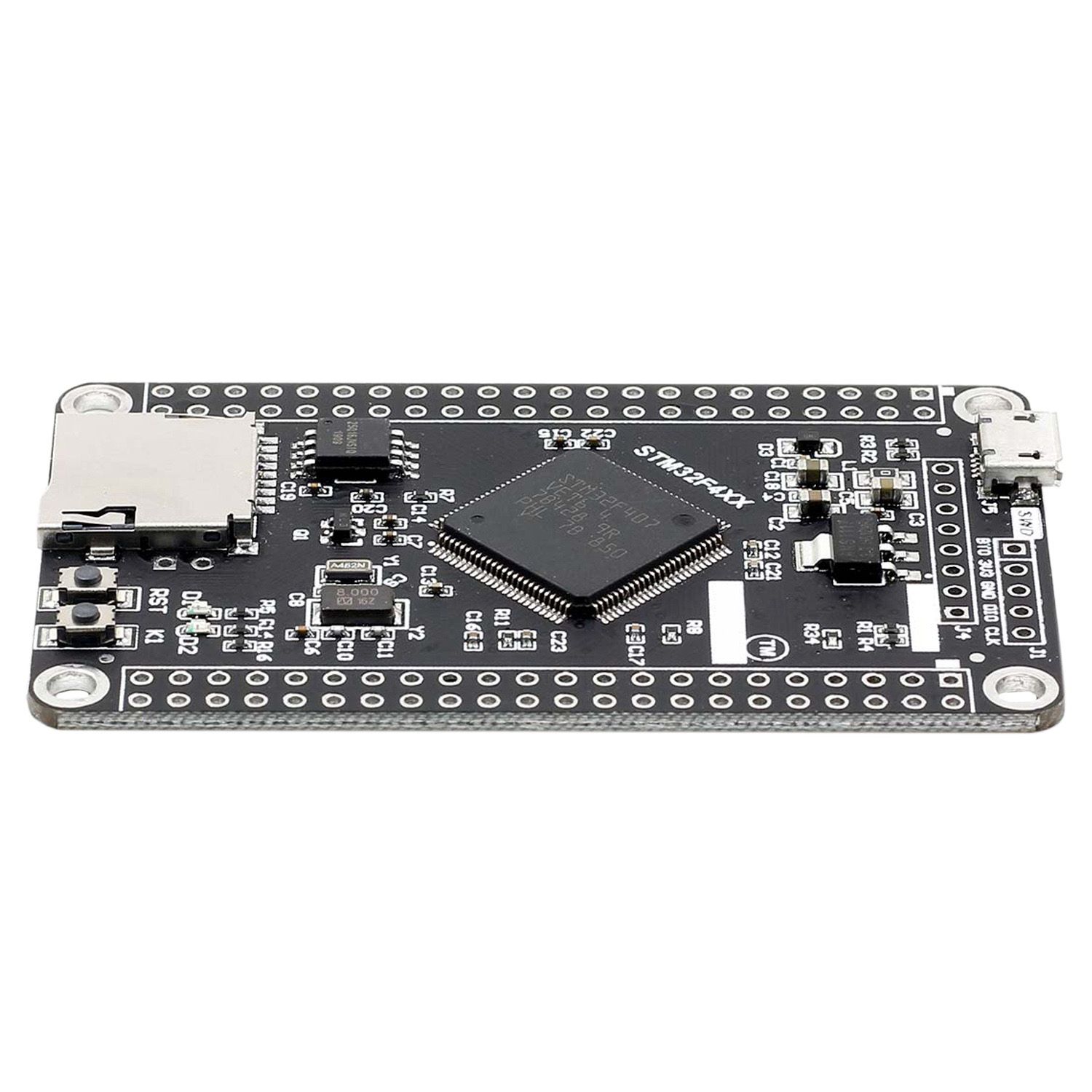

STM32F407VET6 STM32 System Core Board STM32F407 Development Board F407 Single Chip Learning Board
- USB interface support download (DFU download, not serial port)
- OLED interface - plug and play support 0.96 inch OLED
- TFT crystal interface
- Connect 1.44 inch full color L
- Connect 1.8 inch full color L
- Data storage: W25Q16
- High speed crystal oscillator 8MHz
- Low crystal: 32.768K
- + programmable LED lights
- User and reset on
- All CPU-IO leads 2.54 integer pitch pins
- Parameter:
- Kernel: Cortex-M4 32 bit RISC
- Features: Single-cycle DSP instructions
- Operating : 168MHZ, 210DMIPS/1.25DMIPS/MHz
- Working voltage: 1.8-3.6V
- Package: LQFP100
- Storage resource: 512KB Flash
- Resources: 3*SPI, 3*USART
- 2*UART, 2*I2S, 3*12C
- 1*FSMC, 1*SDIO, 2*CAN;
- 1*USB 2.0 FS/HS controller (with dedicated DMA)
- 1*USB HS ULPI (for external USB HS PHY)
- 1*10/100Ethemet MAC
- 1*8 to 12-bit parallel camera interrace
- 3*AD (12-bit, 1us, time-sharing 24), 2*DA (12-bit)
- colour:black
- Material:PCB
- size:41*70MM
- Package Contents:
- 1*System Core Board
- Only the above package content, other products are not included.
- Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
