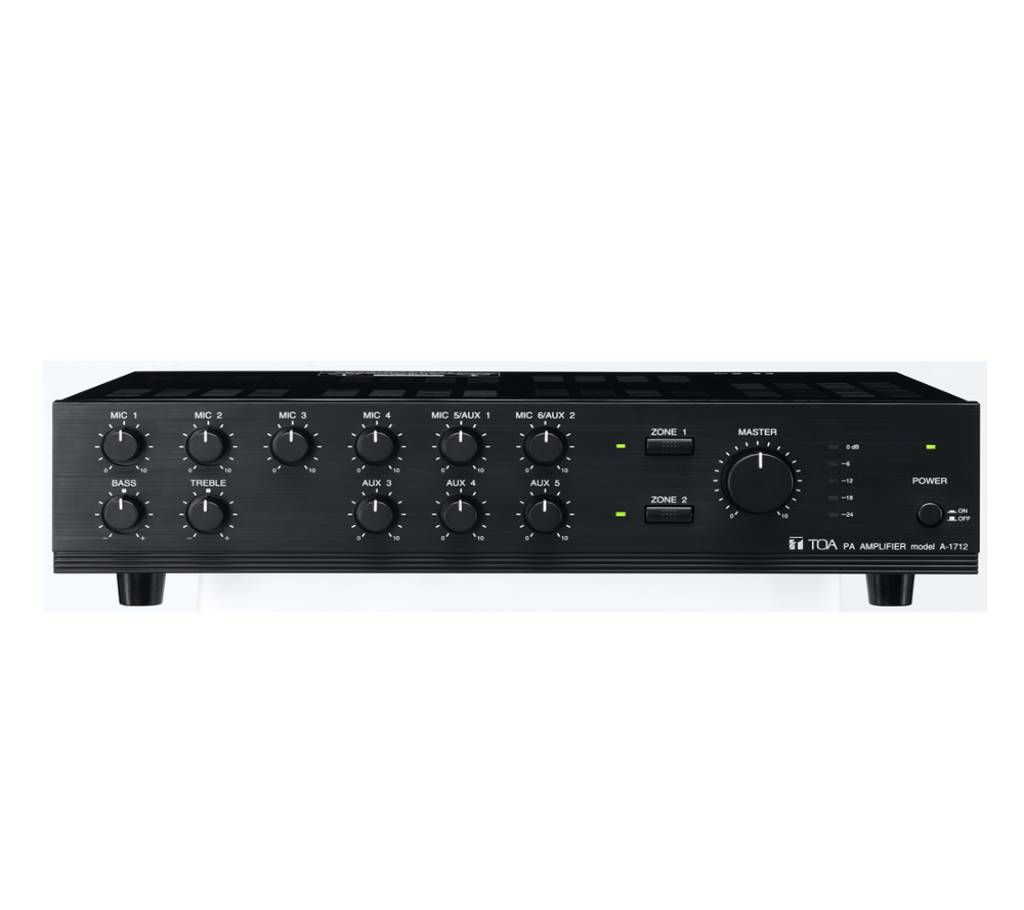

TOA A-1712 Microphone Mixing Amplifier (120 Watt)
TOA A-1712 মাইক্রোফোন মিক্সিং এমপ্লিফায়ার (120 Watt)
The rear has IEC power inlet; loudspeaker outputs using M4 screws; connectors for inputs, external equaliser and record outputs.
A further terminal block connects remote control of volume, and power on/off.
Microphones 1- 4, Aux1/Mic5, Aux2/Mic6, Aux 5 (mono) are connected using connectors combining XLR3 and 3-pole jack sockets.
A miniature (DIP) switch provides for the selection of microphone or auxiliary for two inputs, Aux1/Mic5 and Aux2/Mic6, as well as selecting phantom power for microphone inputs 1 to 6. Aux 3 and Aux4 inputs feature dual connectors, mixing dual channel sources to mono.
The record output also has dual connectors to feed both channels of a stereo recording device. The line out and power amp inputs are single, intended to feed additional power amplifiers, or the insertion of equalisers, delay lines, or feedback reducers.
