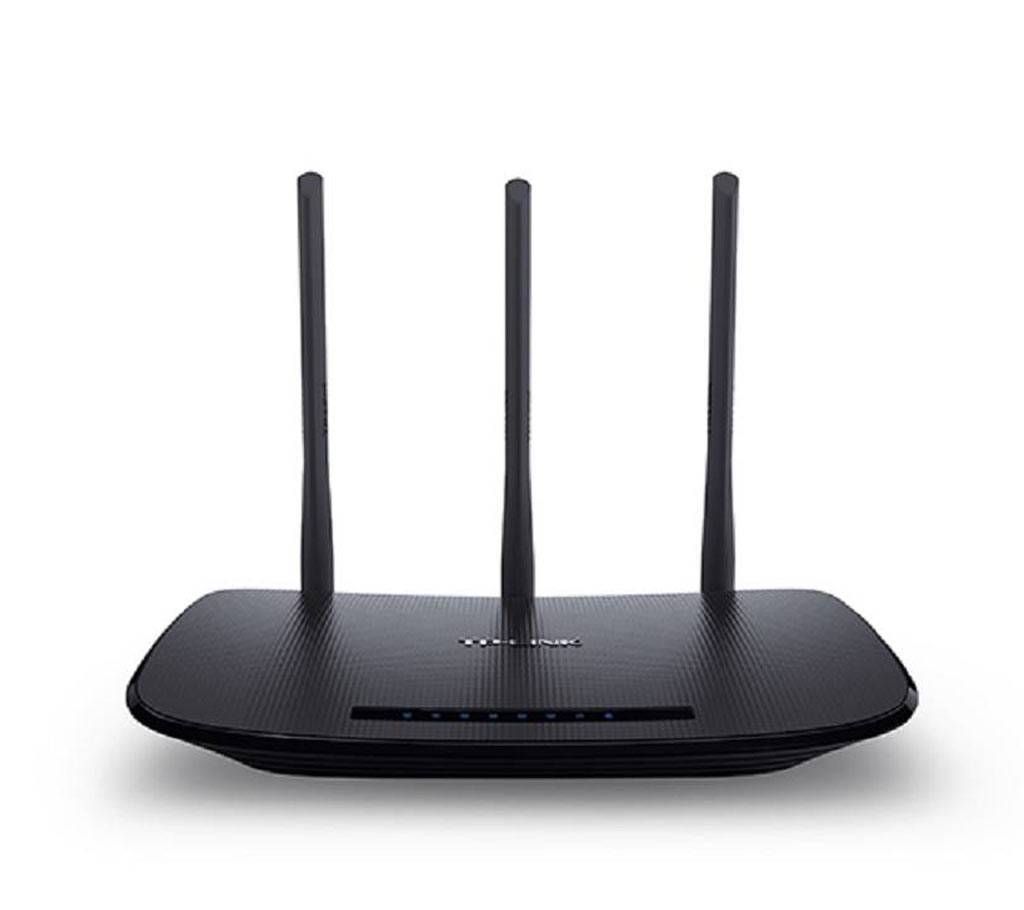

TP LINK TL-WR940N 450MBPS WIRELESS N
HARDWARE FEATURES
Interface 4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Button Wireless On/Off Button,WPS/Reset Button,
Power On/Off Button
Antenna 3*5dBi Fixed Omni Directional Antenna
External Power Supply 12VDC / 1A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power CE:<20dBm(2.4GHz)
FCC:<30dBm
Wireless Modes Router Mode,
Range Extender(for V5 and later),
Access Point Mode (for V5 and later)
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
