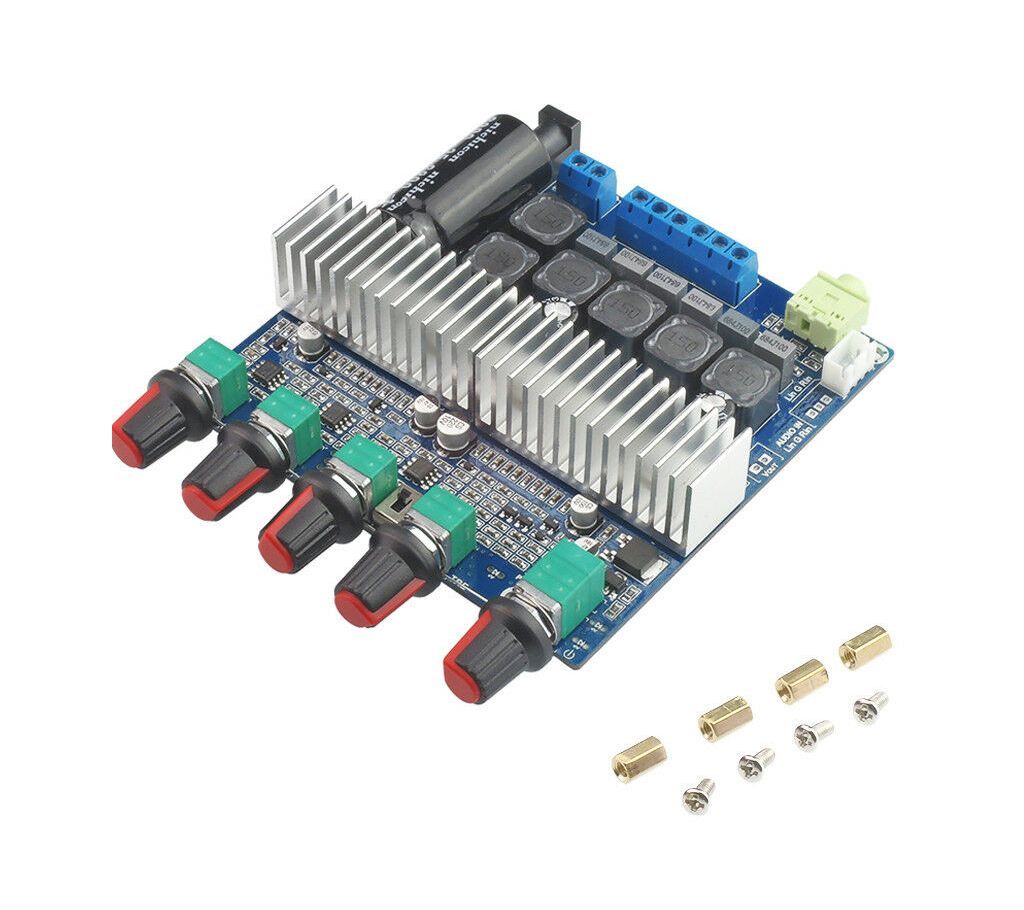

TPA3116D2 audio Power Amplifier Board Dual Channel Stereo 50W*2+100W HIFI 12-24V Super BASS Speaker-Tecio
Operating voltage range: DC11-24V (current 3-4A, or 19-24V/4-5A, if the power requirement is higher than 20-24V/8-9A)
If an AC (AC) transformer power supply is used, it must be rectified and filtered to a DC power supply.
Can only be used. Note that the DC no-load voltage should not be more than 25.5V (this is very important)
Audio input sensitivity: 500-800mV
Frequency response range: 20Hz-20KHz
Speaker impedance:L/R CH speaker 4-8Ω ， BASS speaker 2-8Ω
Maximum output power: 50W(Left CH)+50W(Right CH)+100W(BASS CH)
This is with the pre-amplification, bass divider processing. With bass, left and right channel volume adjustment, treble adjustment, total volume potentiometer control 2.1 power amplifier board
Using DC 12-24V power supply, Maximum support 50W(Left CH)+50W(Right CH)+100W(BASS CH) three channel output
Core Chip: TPA3116D2
Wide operating voltage, power-saving design, the efficiency of up to 90% or more
Boot anti-shock protection design, boot no POP burst sound
Size: 101mm x 100mm x 30mm / 3.97" x 3.94" x 1.18"
Instructions for checking the web page before use - 2. Connect the speaker cable - 3. Connect the audio input cable - 4. Confirm the wiring is correct, and finally plug in the power! To change the wiring or move the board, you must remove the power before operating. Incorrect use, short circuit between solder joints, or short-circuit between parts can cause chip damage.
