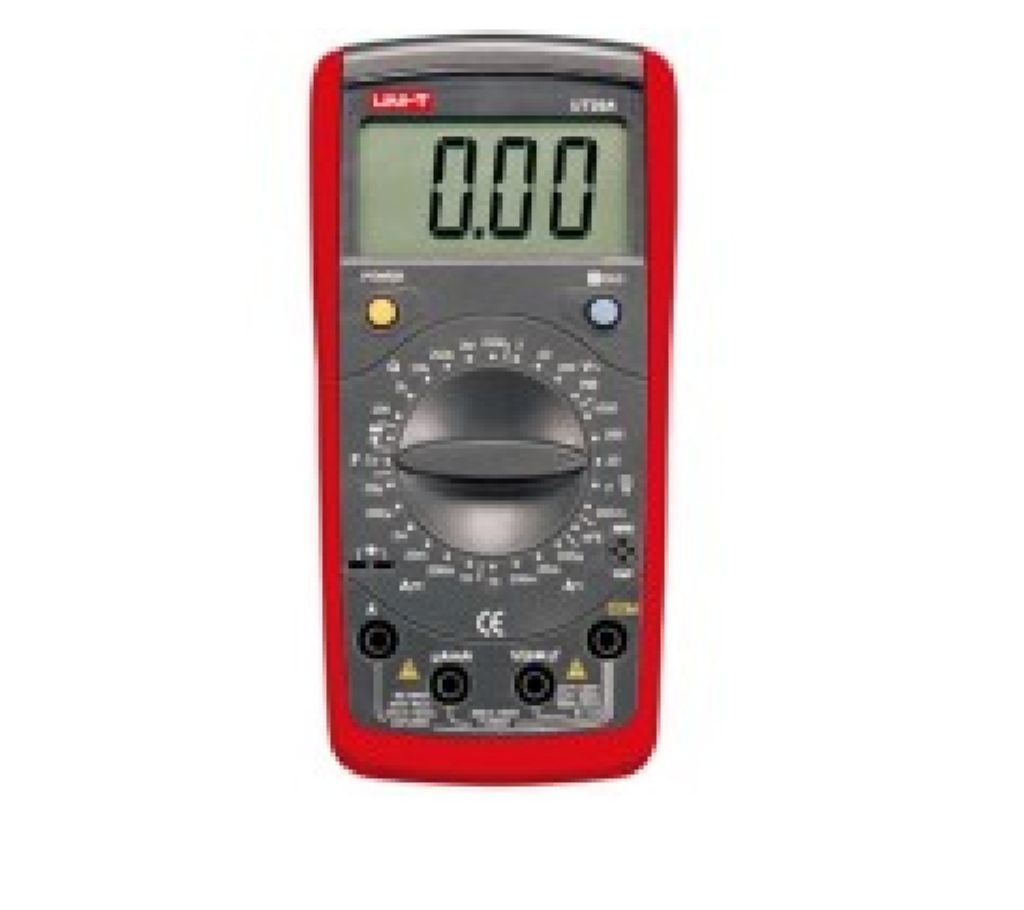

UNI -T Multimeter 39A
UNI -T মাল্টি মিটার 39A
Product Specification
Brand Uni-T
Model 39A
Usage Industrial, Laboratory
Minimum Order Quantity 1 Number
Product Description
Digital Multimeter UNI-T UT39A
SPECIFICATION:
DC Voltage: 200mV / 2V / 20V / 200V / 1000V
– best accuracy: +/- (0.5%+1)
AC Voltage: 2V / 20V / 200V / 750V
– best accuracy: +/- (0.8%+3)
DC Current: 20µA / 200µA / 2mA / 20mA / 200mA / 10A
– best accuracy: +/- (0.8%+1)
AC Current: 200µA / 20mA / 200mA / 10A
– best accuracy: +/- (1%+3)
Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 200 MOhm
– best accuracy: +/- (0.8%+1)
Capacitance: 2µF
– best accuracy: +/- (4%+3)
SPECIAL FUNCTIONS:
Transistor
Diode
Continuity buzzer
Data Hold
Sleep mode
Low battery display
Input impedance for DC Voltage Measurement: 10 MOhm
Max. display: 1999 (61 x 32mm)
GENERAL CHARACTERISTICS:
Power: 9V bat. (6F22)
Product size: 172 x 83 x 38mm
Product weight: 310g
