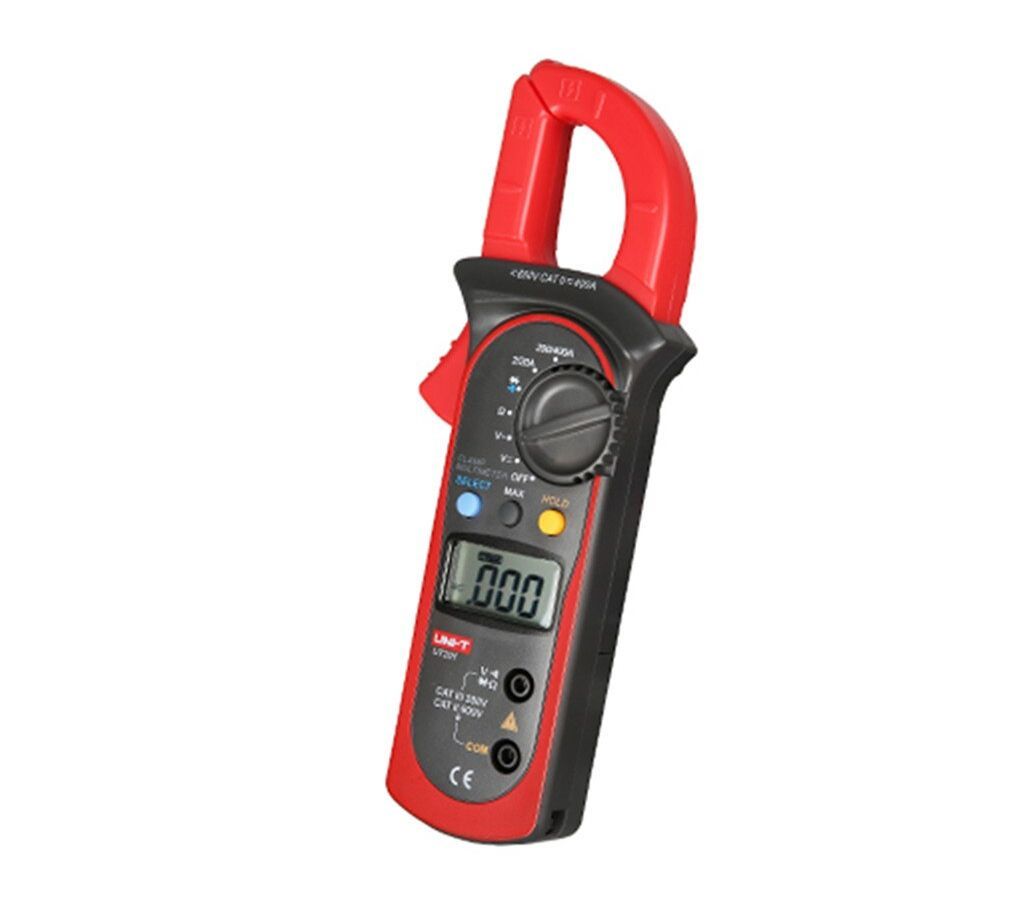

UNI-T UT202 Digital Clamp Multimeter
UNI-T UT202 ডিজিটাল ক্ল্যাম্প মাল্টিমিটার
Technical Specification
Function Range Accuracy
DC Voltage: 200mV / 2V / 20V / 200V / 600V (0.8%+1)
AC Voltage: 2V / 20V / 200V / 600V (1.2%+5)
AC Current: 2A / 20A / 200A / 400A (1.5%+5)
Resistance: 200 Ohm / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm (1%+2)
Temperature: -40 to +1000°C, -40 to +1832°F (Temp. probe up to 200°C included) (1%+3 (°C), +/- 1%+6 (°F))
Special Functions
Auto Range
Diode Test
Continuity Buzzer
Max Hold
Data Hold
Icon Display
Sleep Mode
Low Battery Display
Input Impedance: 10 M Ohm
Max. Display 1999 (35.6 x 18mm)
Power Supply 3V battery (2×1.5V AAA) Included
Test Lead 1 pair Incluided
Temperature probe Included
Parameters
Manufacturer PN UT202
Size 210 x 75.6 x 30mm
Weight 220g
Max. range Vac 600V
Max. range Vdc 600V
Max. range Iac 400A
Capacitance No
Inductance No
Frequency No
Temperature Yes
TRUE RMS No
PC connection No
Range Automatic
Manufacturer UNI-T
