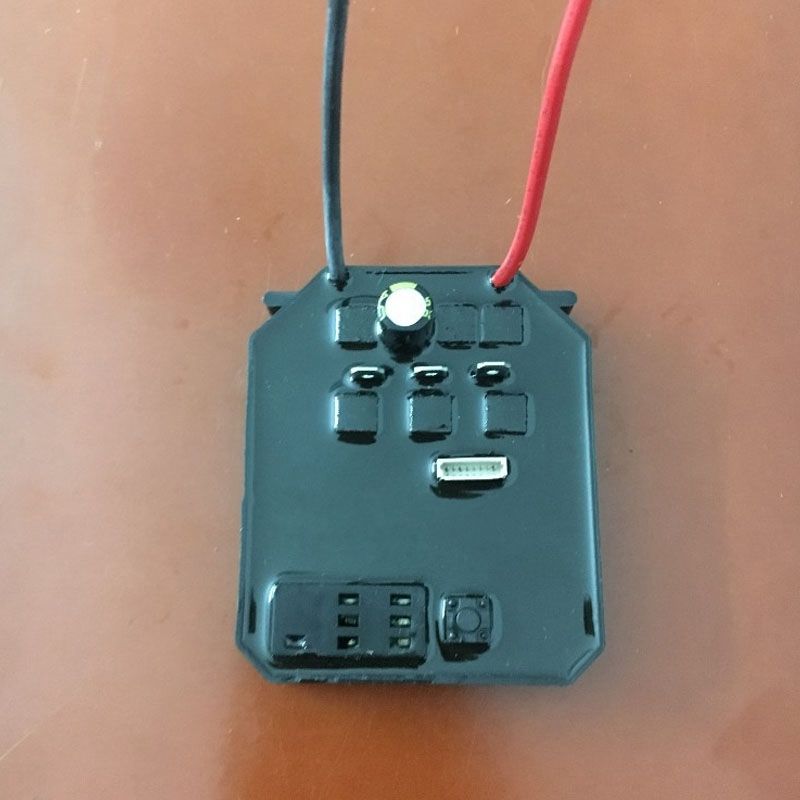

Universal Brushless Electric Wrench Accessories Control Board
- 1. The control panel is repaired and replaced by all brands of 18VB brushless electric wrenches, and can be directly replaced
- 2. Wiring should pay attention to distinguish the positive and negative poles of the power supply (Hong positive and black negative poles), so as not to burn the wrong board!
- 3. The motor only connects to the three thickest wires, and there is no color option. Wire sequence. If the motor is reversed, just change the two motors at will. If the motor is Hall, the 5 Hall wires are not connected, which has no effect on the function.
- 4. Precautions before commissioning: If the machine is a split motor (the stator and rotor can be separated in this area), you must first install the housing cover and tighten the screws, then gently twist the square shaft. Make sure that the motor is fixed OK, you can press the power switch.
