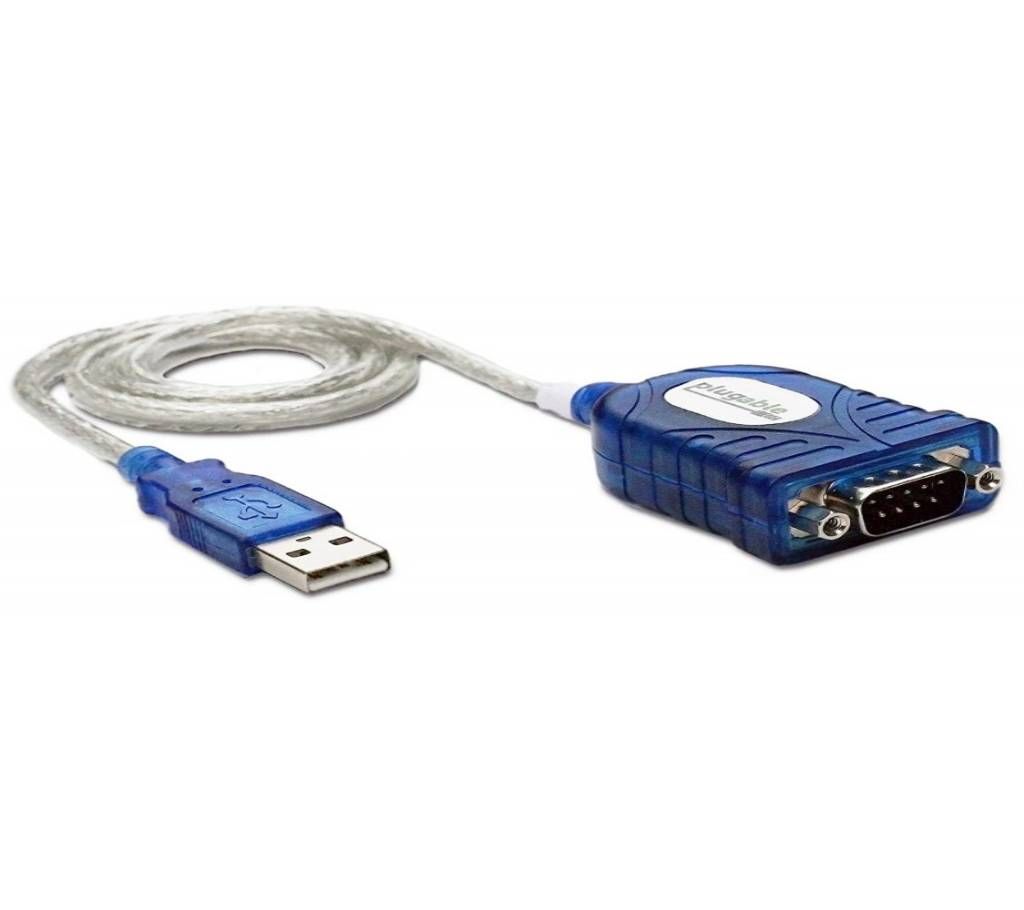

USB TO RS232 Serial Converter
USB TO RS232 সিরিয়াল কনভার্টার
USB-RS232 This quality USB to RS-232 converter transparently connects serial devices to PC applications via a USB port. It is perfect for the user needing to connect to a serial port-based peripheral from a laptop PC with an available USB port but no serial port. The adapter driver creates a virtual serial port (using the next available COM number). Applications connect to the virtual COM port as if it were a standard serial port. The USB-serial conversion is completely transparent to the peripheral device.
Compatible with AutomationDirect’s:
• DirectLOGIC PLCs (DirectSOFT 3.0C build 80 and later versions)
• Optimate panels (OP-WINEDIT software)
• MDM-TEL industrial modem (Modem Wizard software)
Hardware Requirements:
• One available USB port
• If the RS232 port on your device is not a nine pin female, you will need
an additional adapter. USB-RS232 converter is a nine-pin male connecto
Features:
• Flexible cable
• Premium quality
• SS connectors
• Ergonomic molding for easy connection
• Foil and braid shielding to reduce EMI/RFI
interference
• Designed for high-speed transmissions
• LED power and TX/RX indicators
• Mates with PC DB9 serial cables (such as our
D2-DSCBL PLC cable)
• 2 hex nuts included
Operating Systems:
• Windows 10
• Windows 8.1–64-bit, 32-bit
• Windows 8–64-bit, 32-bit
• Windows 7–64-bit, 32-bit
• Windows XP
• RS-232 standard
• Powered by the USB bus
• DB 9 male connector
• USB A male connector
• 4ft cable
• USB 2.0 compliant
• Plug and Play
Origin: China
Type : Communication Cable
Series: RS232 Converter
Shield: Yes
Warranty: 1 Year
