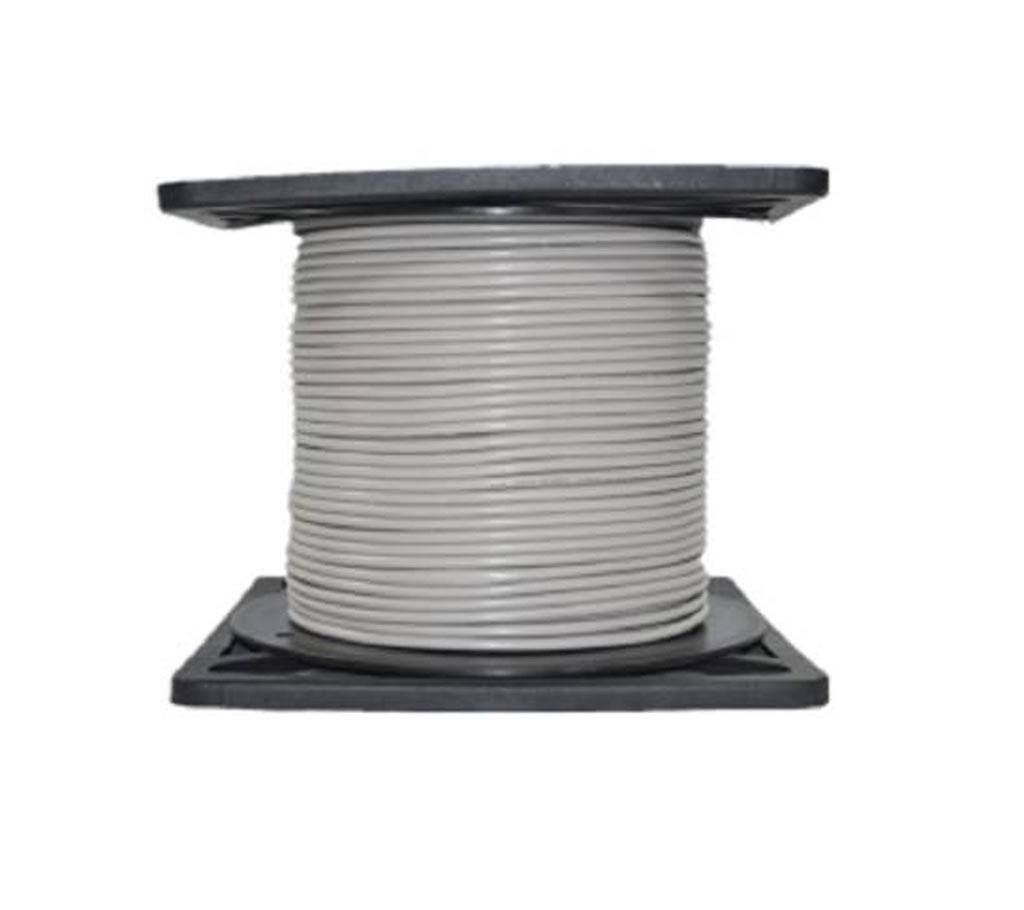

UTP CAT6 Cable PFM921
UTP CAT6 ক্যাবল PFM921
PFM921
UTP CAT6 Cable
Bare stranded copper conductor
305m UTP CAT6
Model PFM921
Conductor Material Bare copper(BC)
Composition 1/0.56
Wire gauge 23AWG*4P
Insulation Material HDPE
Min. average thickness 0.2mm
Diameter 1.0+/-0.05mm
Color(4 Pairs) Orange, white/orange; green, white/green; blue, white/blue; brown, white/brown
Lay of twisted conductors 160mm
Jacket Material PVC(65P)
Min. average thickness 0.65mm
Diameter 6.5+/-0.1mm
Color Gray and orange are optional
Length 305m
Max. DC resistance of single conductor 6.58Ω/100m
Max. unblance rate of line pairs' direct current resistance 2.5%
Min. insulation resistance 5000MΩ•Km
Max. mutual capacitance 5.6NF/100m
Max. attenuation 19.8(dB/100m, 100MHz)
General Rated voltage 300V
Bandwidth 250MHz
Carried standard TIA/EIA-568B
Working temperature
Packaging length 305m trolley case packaging
Weight(with packaging) 13.0Kg
Packaging dimension 335*265*350mm
