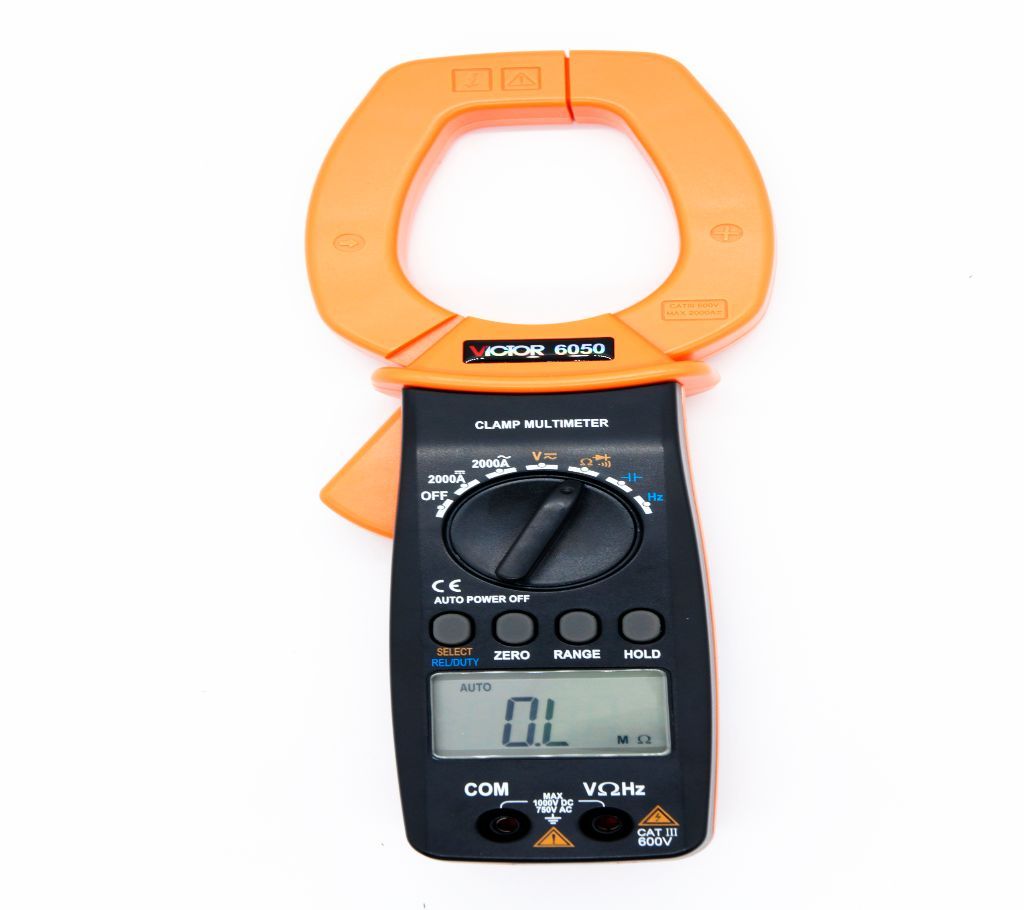

VICTOR 6050 Popular Digital Multimeter
VICTOR 6050 Popular ডিজিটাল মাল্টিমিটার
Product description
Technical Data
DC Voltage: 400mV/4V/40V/400V ±(0.5%+4d)
AC Voltage
400mV ±(1.6%+8d)
4V/40V/400V: ±(0.8%+10d)
750V: ±(1.0%+10d)
DC Current
400A: ±(2.5%+20d)
2000A: ±(2.5%+20d)
AC Current
400A: ±(2.5%+20d)
2000A: ±(3%+10d)
Resistance
400Ω: ±(0.8%+5d)
4kΩ/40kΩ/400kΩ/4MΩ: ±(0.8%+4d)
40MΩ: ±(1.2%+10d)
Capacitance
40nF: ±(5.0%+30d)
400nF/4μF/40μF: ±(3.5%+8d)
100μF: ±(5.0%+10d)
Frequency
5.120Hz/51.20Hz/512.0Hz/5.120kHz/51.20kHz/512.0kHz/100.0kHz: ±(0.5%+4d)
Diode test: √
Continuity Buzzer: √
Low battery indication: √
Hold: Data Hold
Auto power off: √
Relative Value Measurement: √
Sampling rate: 3 times/s
AC frequency response: 40-400Hz
Operation way: Manual range
Max. Display: 3999
Clamp Size: 55mm
Battery: 3V(1.5V*2)
Standard Accessories
Test leads , battery ,instruction manual
