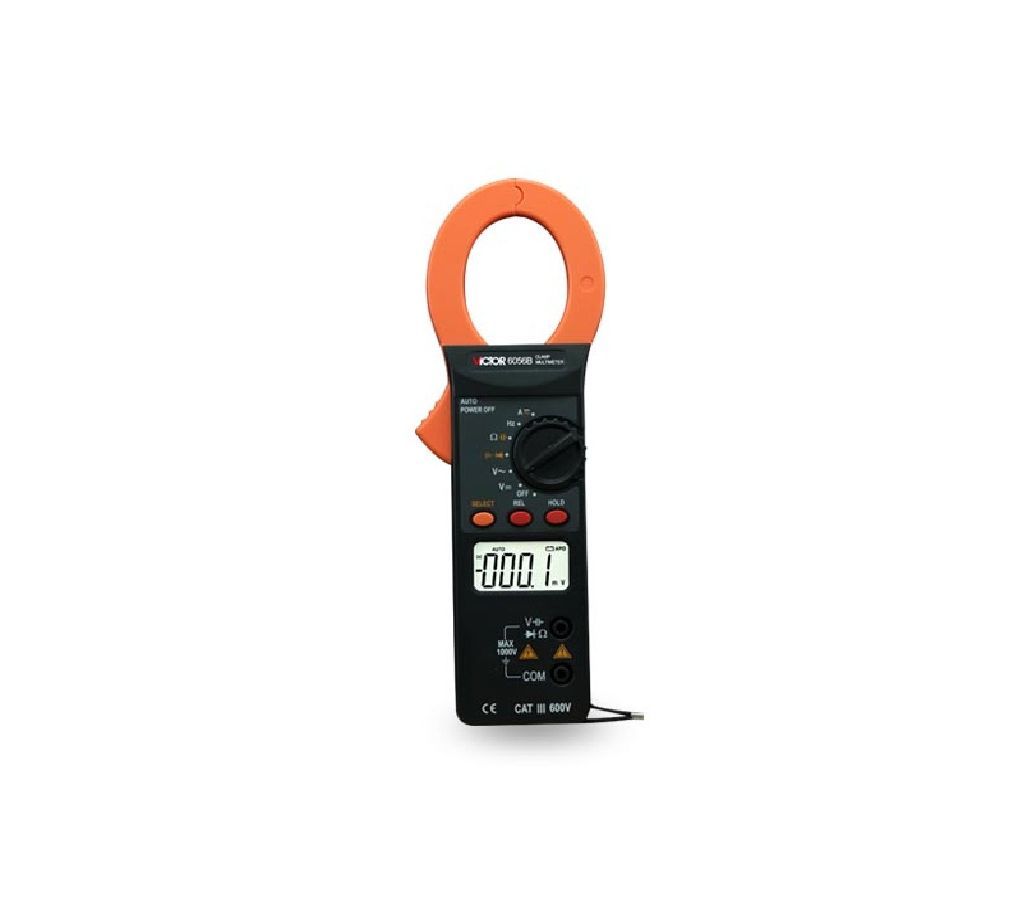

VICTOR 6056B Digital Clamp Meter
VICTOR 6056B ডিজিটাল ক্ল্যাম্প মিটার
Descriptions for VICTOR 6056B AC/DC Digital Clamp Meter
Features:
1, portable design, can be one-handed operation, easy to use;
2, clamping head with the double protection of insulation, enhanced anti-jamming;
3, non-contact measurement, to improve the measurement safety;
4, structural design stringent and reasonable.
Basic functions Range. Basic accuracy
DC voltage 400mV/4V/40V/400V/1000V +(0.5%+4)
AC voltage 4V/40V/400V/750V 10.008
AC Current 40A/400A/1000A 8.025
DC Current 40A/400A/1000A 8.025
Resistance 400惟/4k惟/40k惟/400k惟/4M惟/40M惟 4.008
Capacitor 40nF/400nF/4uF/40uF/100uF 10.03
Frequency 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz 4.005
Special features VICTOR 6056B
Diode test Y
On-Off Alarm Y
Low Voltage Display Y
Unit Symbol Display Y
Keep Data / Peak Hold
Automatic shutdown Y
Overload Y
Impedance 10M惟
Sampling frequency 3 time/s
AC Current Frequency (40-200)Hz
Mode of operation Auto Range
Maximum display 3999
Jaw open 38mm
Power 9V
