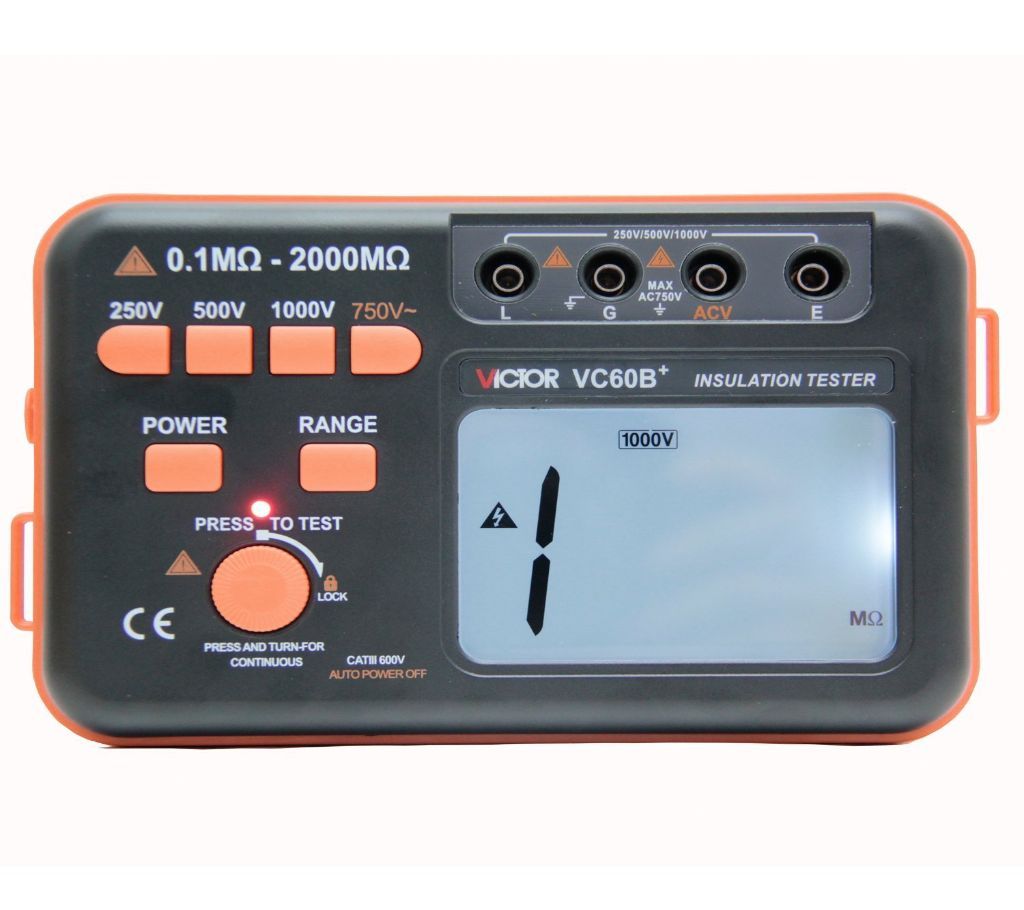

VICTOR 60B+ Insulation Resistance Tester
VICTOR 60B+ Insulation Resistance টেস্টার
Product description
Introduction:
The whole instrument is stylish and superior grade in appearance and highly stable in performance. It can be operated by both hands through using a shoulder strap. It is most suitable for the needs of insulation resistance check, such as electric, cable, electrical and mechanical equipment, telecommunication equipment and electrical facilities.
Specification:
Model: VC60B+
Measuring Voltage: 50V±10% 500V±10% 1000V±10%
Insulation Range: 0.1MΩ~20 MΩ 0.1MΩ~50 MΩ 0.1MΩ~100 MΩ
20MΩ~500 MΩ 50MΩ~1000 MΩ 100MΩ~2000 MΩ
Accuracy: ±(4%+2)
Current of Short Circuit: 1.8mA 1.8mA 1.6mA
Median Resistance: 2MΩ 2MΩ 5MΩ
Terminal Position: L & E
Voltage Test(AC750V) Accuracy: ±(1.0% of reading + 6 digits)
Input Impendance: 1MΩ
Frequency Response: (50~200) Hz
Terminal Position: ACV & G
Alarm Function Red indicator light is illuminated
Low Battery Indication: Yes
Over Load Indication: Yes
Unit Symbol Display: Yes
Auto Power Off: Yes
Max. Display: 1999
Over Range Display: “1”
Operating Temperature: 0℃~40℃
Relative Humidity: 30%RH~85%RH
Dimension: 105×164×70mm
