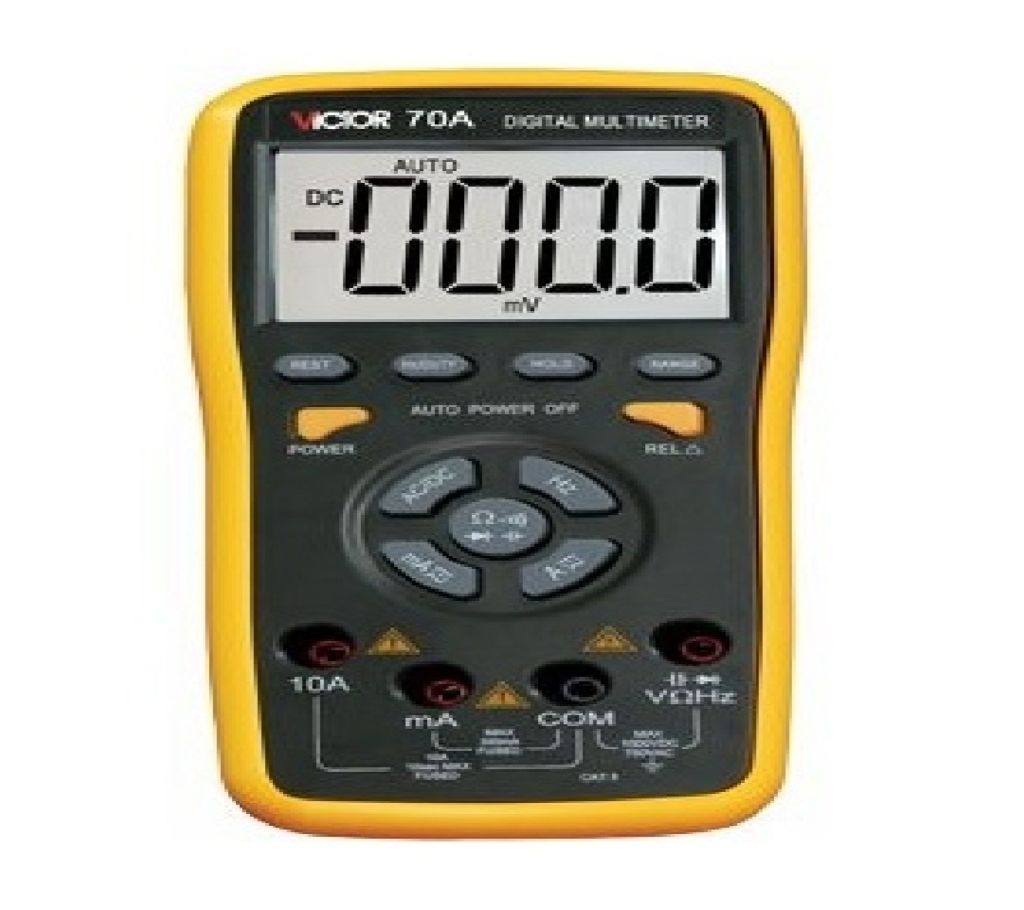

VICTOR 70A Electric Handheld Tester Meter
VICTOR 70A Electric Handheld টেস্টার মিটার
DIGITAL MULTIMETER VICTOR 70A Electric Handheld Tester Meter
Product Features
New type holster, streamline design.
Large LCD makes the reading clearly.
Key spring type; automatic operation way.
Metallic screen board with stronger antimagnetic and anti-interferential function.
Data hold, Diode, etc.
Product Details
Item Weight: 11 ounces (320g)
Shipping Weight: 1 pounds (500g) (For reference)
Product Dimensions: 200 x 90 x 45 mm 7.9 x 3.5 x 1.8 inches (For reference)
Basic Function Range Basic accuracy
DC Voltage 400mV/4V/40V/400V/1000V ±(0.5%+4)
AC Voltage 400mV/4V/40V/400V/750V ±(0.8%+10)
DC Current 30mA/300mA/10A ±(1.5%+10)
AC Current 30mA/300mA/10A ±(1.5%+10)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)
Capacitance 4nF/40nF/400nF/4uF/40uF/200uF ±(2.5%+20)
Frequency 100Hz/1000Hz/10kHz/100kHz/1MHz/30MHz ±(0.5%+10)
Special Function VICTOR 70A
Low battery indication √
Data hold √
Auto power off/Shockproof protection √
10A/600Ma fuse protection √
Unit symbol display √
Duty cycle measurement 0.1%~99.9%
Input impedance 10MΩ
Sampling rate 3 time/s
AC Frequency response (40-400)Hz
Max. Display 3999(3 3/4)
LCD size 70×50mm
Battery 3V(1.5V×2)7#
General Characters
Product color Case: dark gray; Holster color: yellow
Product Net Weight Approx.: 320g (battery not included)
Product Dimension 200×90×45mm
Standard Accessories Test leads/ battery /instruction manual/TPO1 temperature probe/Testing accessories
Standard inner packing Color box
Standard Quantity Per Carton 30Pcs
Carton Size
465×317×506mm
