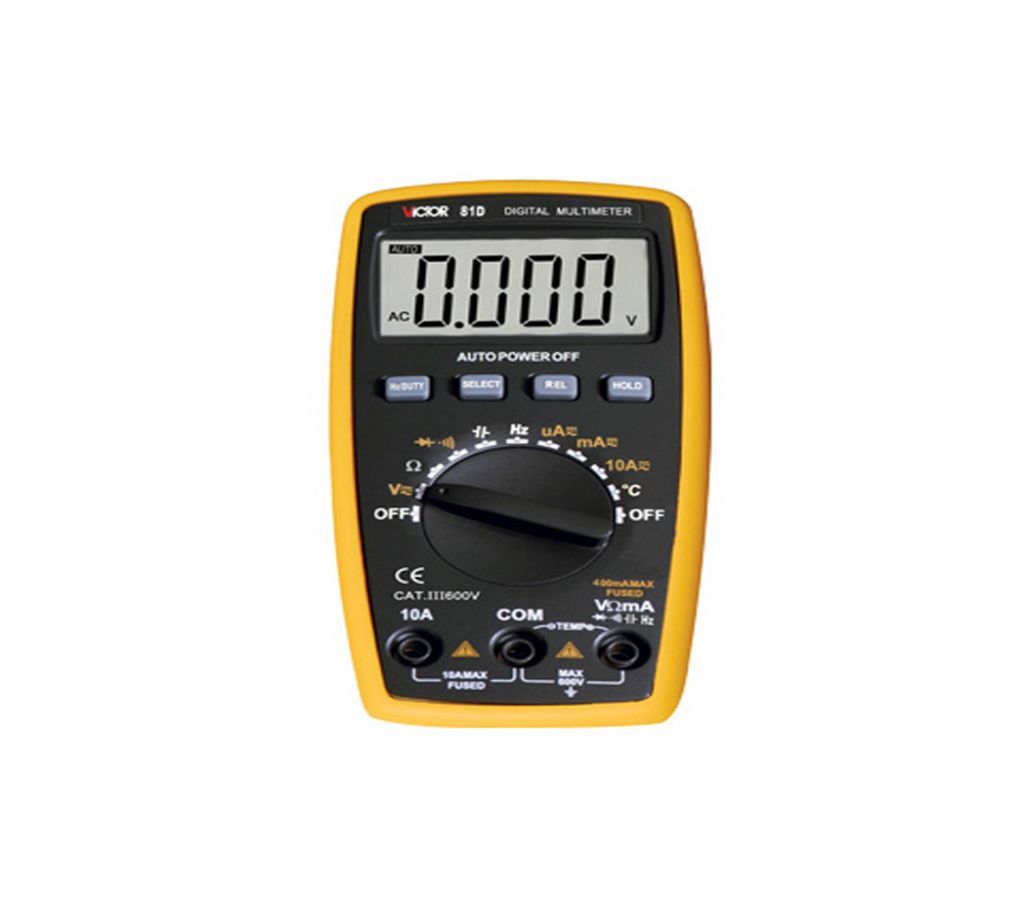

VICTOR 81D Digital Multimeter
VICTOR 81D ডিজিটাল মাল্টিমিটার
Description of the digital multimeter Victor 81D:
The digital multimeter Victor 81D is a multifunctional device with a manual selection of measurement modes using a switch and input jacks insulated into the case. The multimeter is a robust, compact, battery-operated digital device.
The multimeter Victor 81D has the functions of measuring direct or alternating voltage (DCV / ACV), direct or alternating current (DCA / ACA), resistance (R), capacitor capacitance (C), temperature (t), frequency (duty cycle), checking diodes and dialing chains. A dual-integrated analog-to-digital converter makes this multimeter an accurate and reliable tool.
To improve the reading of the readings in the Victor 81D multimeter , a large 4-digit liquid-crystal display (maximum display “3999”) and a height of 18.9 mm characters are used. The function of fixing the current value (HOLD) and overload protection make the operation of this multimeter more convenient and safe.
If the controls of the Victor 81D multimeter are not used for 15 minutes, in order to save energy, the battery life of the instrument power supply is automatically turned off (Auto Power Down function). The multimeter has a protective cover (canvas) for protection against mechanical effects and fixing the measuring wires, as well as a folding stand-emphasis on the rear panel for easy installation of the device at the workplace.
Constant voltage 600 V
AC voltage 600 V
Voltage resolution 1 mV
Constant current 10 A
AC current 10 A
Current resolution 0.1 μA
Maximum resistance 40 megohm
Resistance Resolution 0.1 ohm
Maximum capacity 100 uF
Capacity resolution 1 pF
Frequency max 30 MHz
Frequency resolution 0.001 Hz
Base error 0.5%
Temperature measurement Yes
Chain ping Yes
Diode check Yes
