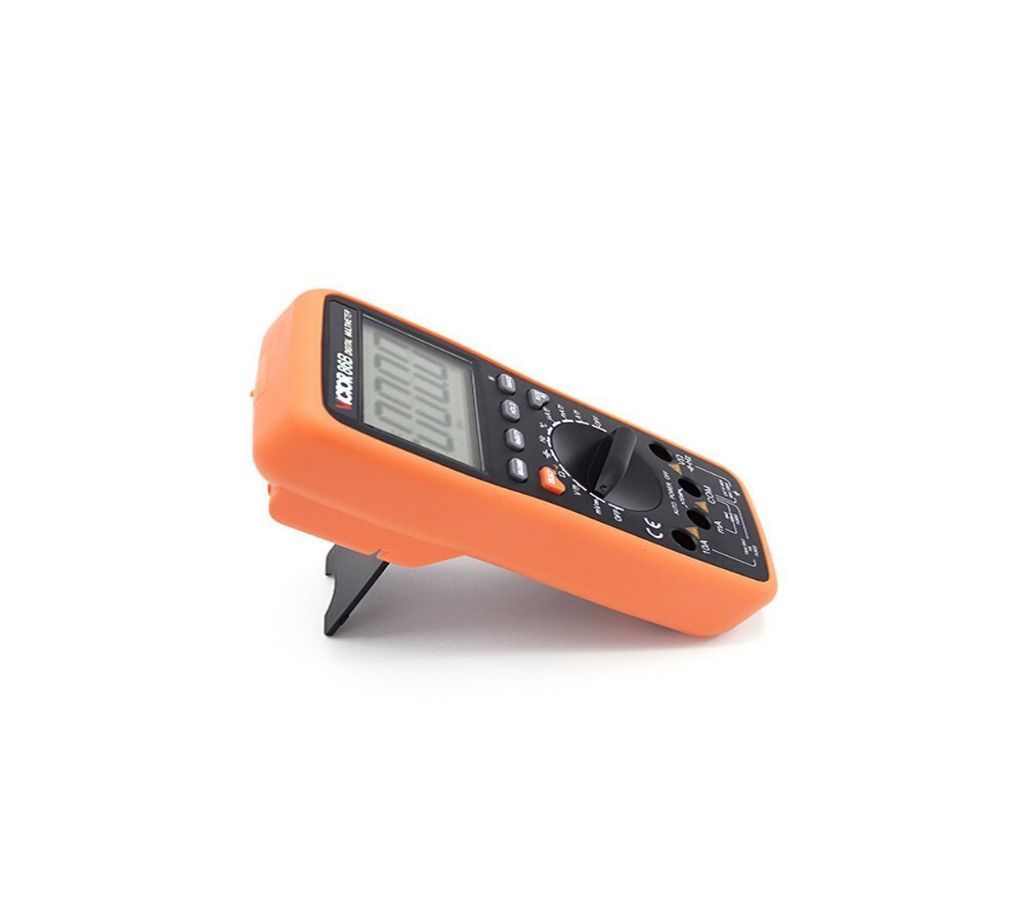

VICTOR 86B High Quality Digital Multimeter
VICTOR 86B ডিজিটাল মাল্টিমিটার
VICTOR 86B Digital Multimeter. New type holster, streamline design, USB interface can connect to computer, Large LCD analog bar graph display. Unit symbol display, make the reading clearly, display. Metallic screen board with strong antimagnetic and anti-interferential function. Auto power off and alarm when stopped used after 15 minutes. Full function protection, anti-high voltage circuit design
Technical data:
Basic Function Range Basic accuracy
DC Voltage 400mV/4V/40V/400V/1000V ±(0.5%+4)
AC Voltage 400mV/4V/40V/400V/750V ±(0.8%+10)
DC Current 400uA/4000uA /40mA/400mA/4A/10A ±(1.0%+10)
AC Current 400uA/4000uA /40mA/400mA/4A/10A ±(1.5%+10)
Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+4)
Capacitance 50nF/500nF/5uF/50uF/100uF ±(3.5%+8)
Frequency 4Hz/40Hz/400Hz/4kHz/40kHz/400kHz/4MHz/30MHz ±(0.1%+4)
Temperature (-20 ~ 1000)℃ ±(1.0%+5)
Special Function
Diode test √
Continuity buzzer √
Low battery indication √
Data hold √
Auto power off √
Bar graph display √
RS232 interface jack √
Function protection √
Shockproof protection √
Frequency /duty cycle 0.1%~99.9%
Input impedance 10MΩ
Sampling rate 3 times/s
AC Frequency response (40-400)Hz
Operation way Auto range
Max. display 3999
LCD Size 70×50mm
Power 3V (1.5V×2)
General Characters
Product color Case: dark gray; Holster color:yellow
Product Net Weight Approx.350g (including battery)
Product dimension 191×93×48mm
Standard Accessories Test leads; battery; instruction manual TP01 temperature probe;(86C Transistor test accessory)
Standard inner packing Color box
Carton size 465×375×506mm
Standard Quantity Per Carton 30 pcs
Standard Gross Weight Approx. 26kg
