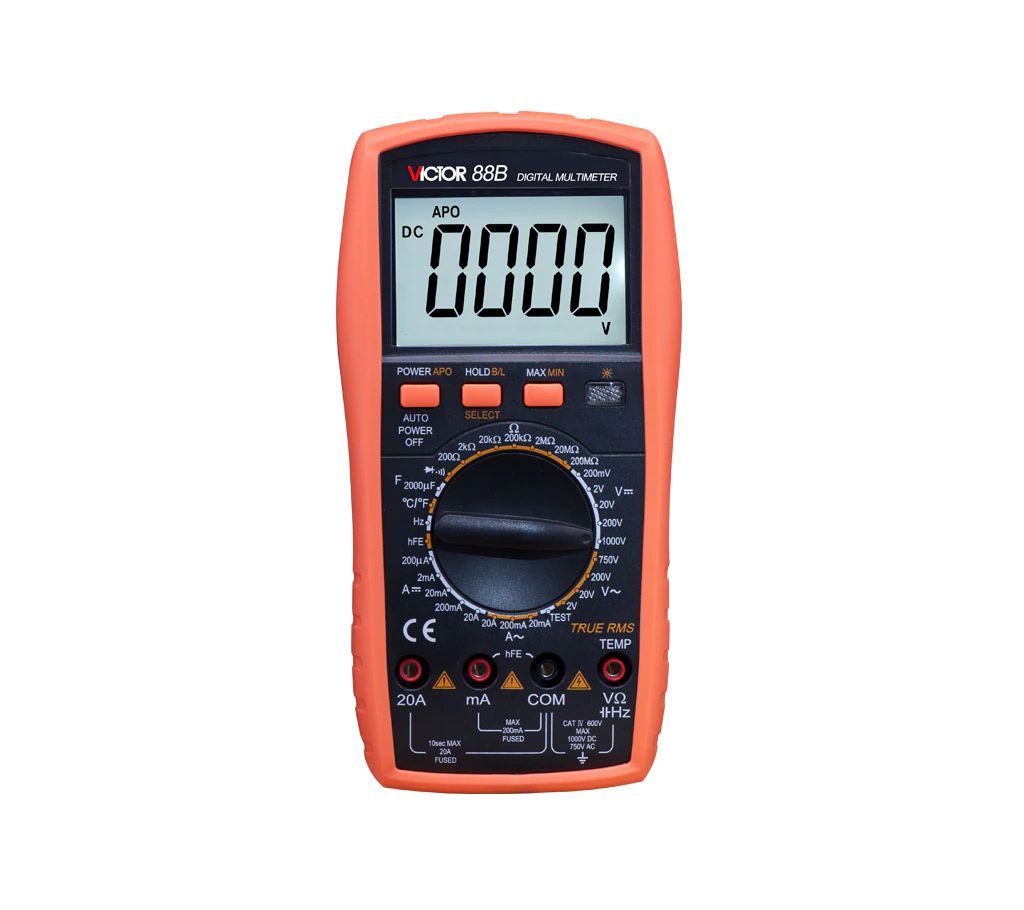

VICTOR 88B High Quality Digital Multimeter
VICTOR 88B ডিজিটাল মাল্টিমিটার
Description:
New type holster, streamline design.
Large LCD makes the reading clearly.
Metallic screen board with stronger antimagnetic and anti-interferential function.
No power off under natural operation.
Full function protection, anti-high voltage circuit design.
Basic Function
Range
Basic accuracy
DC Voltage
200mV/2V/20V/200V/1000V
±(0.5%+3)
AC Voltage
2V/20V/200V/750V
±(0.8%+5)
DC Current
20mA/200 mA /20A
±(0.8%+4)
AC Current
20mA/200 mA /20A
±(1.0%+5)
Resistance
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ
±(0.8%+3)
Capacitance
20nF/2uF/200uF
±(2.5%+20)
Frequency
2kHz/200kHz
±(3.0%+15)
Celsius
(-20 ~ 1000)℃
±(1.0%+3)
Special Function
VICTOR88B
Diode test
√
Continuity buzzer
√
Low battery indication
√
Data hold
√
Auto power off
√
Backlight
√
Function protection
√
Restorable Fuse protection
√
Shock proof protection
√
Input impedance
10MΩ
Sampling rate
3 times/s
AC frequency response
(40-400)Hz
Operation way
Manual range
Max. Display
1999
LCD size
65×45mm
Battery
9V (6F22)
General Characters
Product color
Case: dark gray ; Holster color : yellow
Product Net Weight
Approx. : 400g(include battery )
Product Dimension
189×97×35mm
Standard Accessories
Test leads / battery /instruction manual/TPO1 temperature probe/Testing accessories
Standard inner packing
Color box
Standard Quantity Per Carton
30Pcs
Carton Size
465*317*506mm
Standard Gross Weight
