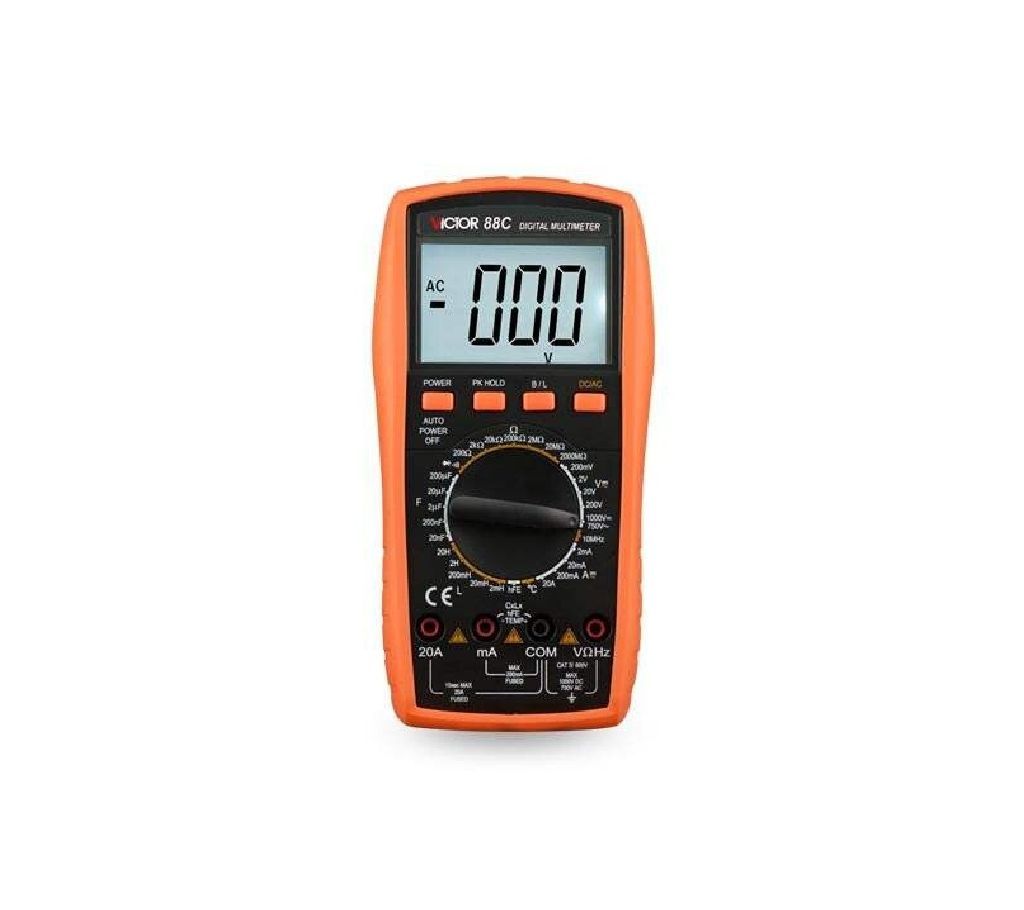

VICTOR 88C High Quality Digital Multimeter
VICTOR 88C ডিজিটাল মাল্টিমিটার
VICTOR 88 Series Digital Multimeter with Temperature and Inductance Test; Streamline Design & Large LCD Display
New type holster, streamline design.
Large LCD makes the reading clearly.
Metallic screen board with stronger antimagnetic and anti-interferential function.
No power off under natural operation.
Full function protection, anti-high voltage circuit design.
Basic Function
Range
Basic accuracy
DC Voltage
200mV/2V/20V/200V/1000V
±(0.5%+3)
AC Voltage
200mV/2V/20V/200V/750V
±(0.8%+5)
DC Current
2mA/20mA/200mA /20A
±(0.8%+3)
AC Current
2mA/20mA/200mA /20A
±(1.0%+5)
Resistance
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ/2000MΩ
±(0.8%+3)
Capacitance
20nF/200nF/2uF/20uF/200uF
±(2.5%+20)
Frequency
2kHz/20kHz /200kHz/2000kHz/10MHz
±(0.5%+4)
Inductance
2mH/20mH/200mH/2H/20H
±(2.5%+20)
Celsius
(-20 ~ 1000)℃
±(1.0%+4)
Special Function
VICTOR88C
Diode test
√
Continuity buzzer
√
Data hold
√
Auto power off
√
Backlight
√
Function protection
√
Restorable Fuse protection
√
Shock proof protection
√
Input impedance
10MΩ
Sampling rate
3 times/s
AC frequency response
(40-400)Hz
Operation way
Manual range
Max. Display
1999
LCD size
65×45mm
Battery
9V (6F22)
General Characters
Product color
Case: dark gray ; Holster color : yellow
Product Net Weight
Approx. : 400g(include battery )
Product Dimension
189×97×35mm
Standard Accessories
Test leads / battery /instruction manual/TPO1 temperature probe/Testing accessories
Standard inner packing
Color box
Standard Quantity Per Carton
30Pcs
Carton Size
465*317*506mm
