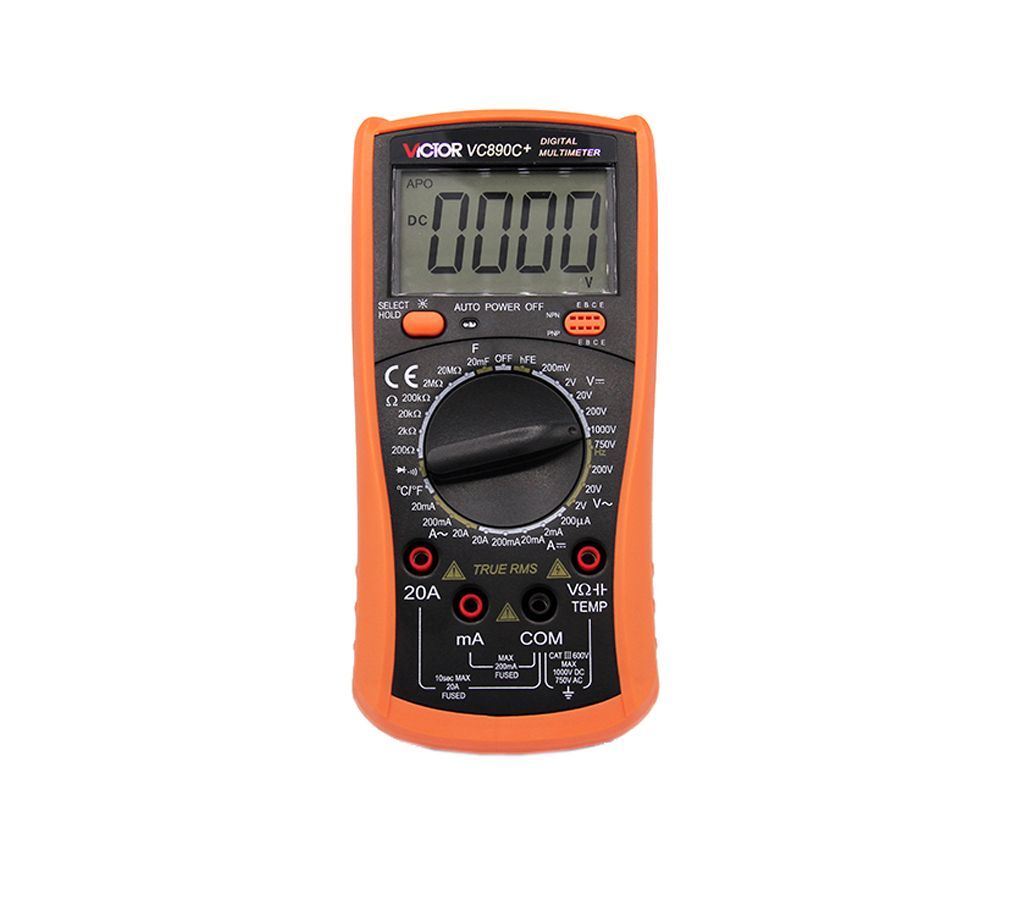

VICTOR 890C+ Digital Multimeter
VICTOR 890C+ ডিজিটাল মাল্টিমিটার
কম দামে খুব ভালো একটি মাল্টিমিটার, অনায়াসে কিনতে পারেন।
VICTOR VC890C+ Digital Multimeter AC DC Ohm Voltmeter Ohmmeter Ammeter
DC voltage : 200mV/2V/20V/200V/1000V ± (0.5% +3)
AC voltage : 2V/20V/200V/750V ± (0.8% +5)
DC current : 200uA/20 mA / 200mA/20A ± (0.8% +10)
AC Current : 20mA / 200mA/20A ± (1.0% +15)
Resistance : 200Ω/2kΩ/20kΩ/200kΩ/20MΩ ± (0.8% +3)
Capacitance : 20nF/2uF/200uF ± (2.5% +20)
Temperature : (-40 ~ 1000) ° ± (1.0% +5) the maximum temperature of 250 degrees with the probe
Features :
New type holster, streamline design
Large LCD makes the reading clearly.
Metallic screen board-stronger antimagnetic & anti-interferential function.
Full function protection, anti-high voltage circuit design
Specification :
Basic Function :
DC Voltage 200mV/2V/20V/200V/1000V ±(0.5%+3)
AC Voltage 2V/20V/200V/750V ±(0.8%+5)
DC Current 20uA/2mA/200mA/20A
200uA/20mA/200mA/20A ±(0.8%+10)
AC Current 2mA/200mA/20A
20mA/200mA/20A ±(1.0%+15)
Resistance 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ
200Ω/2kΩ/20kΩ/200kΩ/20MΩ ±(0.8%+3)
Capacitance 20nF/2uF/200uF ±(2.5%+20)
Celsius (-40~1000)°c ±(1.0%+5)
Special Function :
Diode C
Transistor √
Continuity buzzer √
Low battery indication √
Data Hold √
Auto power off √
Function protection √
Restorable Fuse protection √
Shock proof protection √
Input impedance 10MΩ
Sampling rate 3 times/s
AC Frequency response 40 to 400Hz
Operation way Manual range
Max. Display 1999
LCD size 55x43mm
Battery 9V(6V22)
General Characters :
Product color Case: dark gray; Holster color;yellow
Product Net Weight Approxx270g
Product Dimension 168x87x47mm
Standard Accessories Test leads,battery.TP01 temperature probe(with temperature function).Testing accessories
Package included :
1 x VICTOR VC890C+ Digital Multimeter (Come with full kit accessories as above)
