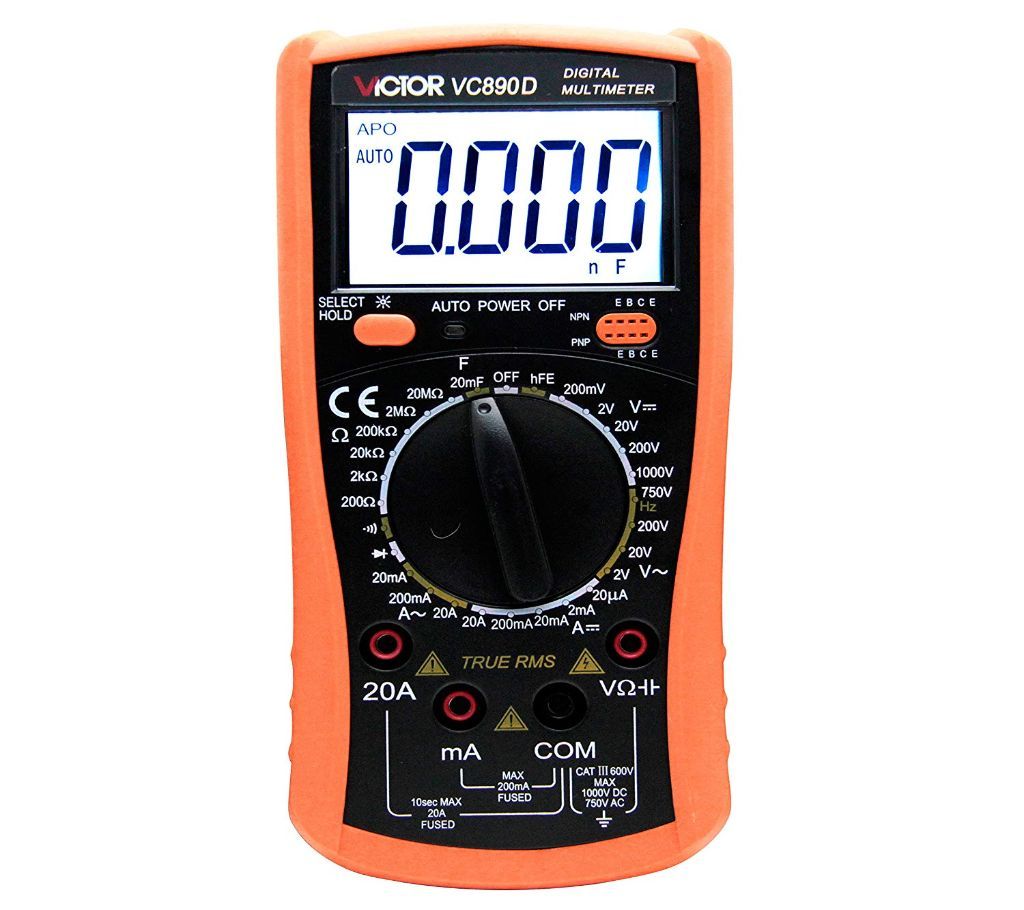

VICTOR VC890D Digital Multimeter
VICTOR VC890D ডিজিটাল মাল্টিমিটার
Product description
Pattern:VC890D
Large LCD makes the reading clearly
Metallic screen board with stronger antimagnetic and anti-interferential function
Full function protection, anti-high voltage circuit design
Specifcation:
DC Voltage: 200mV/2V/20V/200V/1000V ±(0.5%+3)
AC Voltage: 2V/20V/200V ±(0.8%+5)
750V ±（1.2%+10）
DC Current: 20uA/2mA/200mA ±(0.8%+10)
200mA ±(1.2%+8)
20A ±(2%+5)
AC Current: 2mA ±(1%+15)
200mA ±(2%+5)
20A ±(3%+10)
Resistance: 200Ω ±(0.8%+5)
2kΩ/20kΩ/200kΩ/2MΩ ±(0.8%+3)
20MΩ ±(1%+25)
Capacitance: 2nF ±(5%+40)
20nF/20nF/2uF/200uF ±(2.5%+20)
2000uF ±(5%+10)
Diode:Yes
Transistor:Yes
Continuity buzzer:Yes
Low battery indication:Yes
Data Hold:Yes
Auto power off:Yes
Function protection:Yes
Restorable fuse protection:Yes
Shockproof protection:Yes
Input impedance: 10mΩ
Sampling rate: 3 times/s
AC Frequency response: 40 to 400Hz
Operation way: Manual range
Max. Display: 1999
LCD size: 61x36mm
General Characteristics:
Production Color:Orange and black
Product Net Weight:400G(0.9Ib)
Gross weight:600G(1.3Ib)
Meter Size:176mmx91mmx49mm(6.9inx3.6inx1.9 in)
Packing Size:208mmx136mmx68mm(8.2inx5.4inx2.7 in)
Battery:1x9V6F22 Battery(not included this order)
Package include:
1xVC890D Multimeter
1xEnglish User Manual
1 Pair x Test Probe Leads
