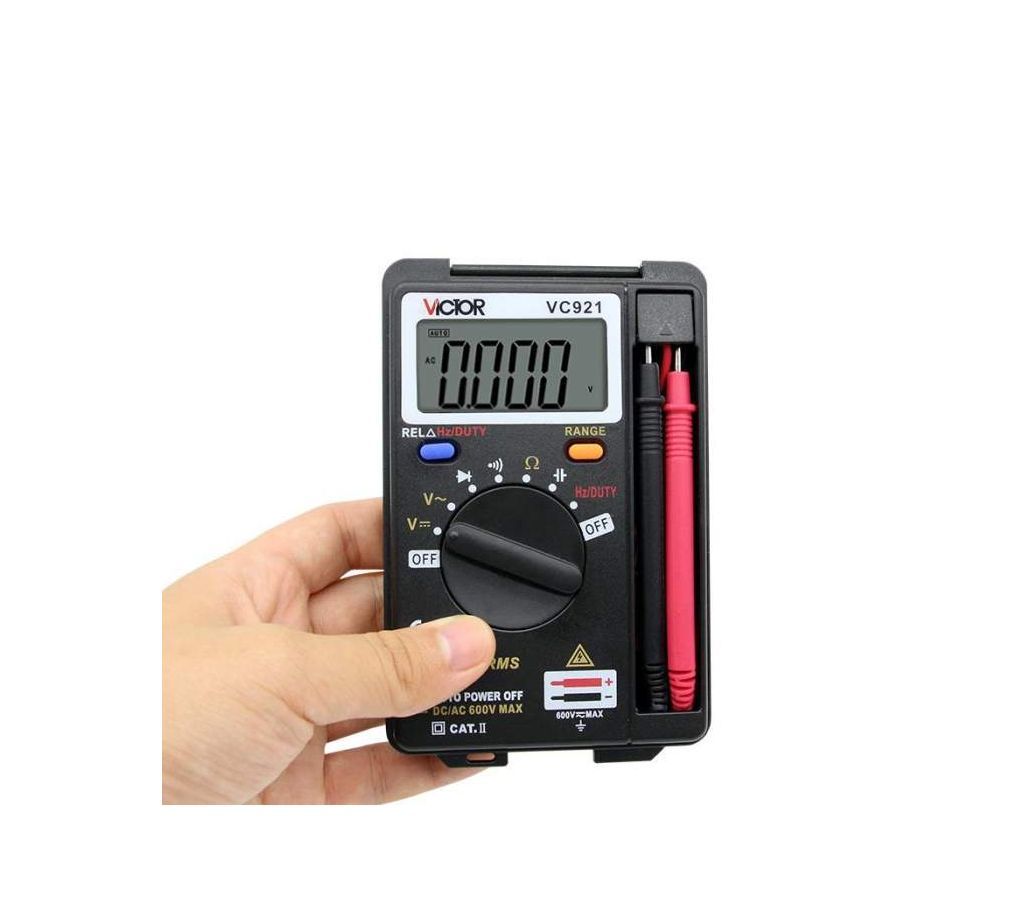

VICTOR VC921 Digital Multimeter
VICTOR VC921 ডিজিটাল মাল্টি মিটার
Specifications:
Victor VC921 3 3/4 Pocket Digital Multimeter Mini Tiny Small
.New type holster. streamline design.
.Metallic screen board with stronger antimagnetic and anti-interferential function.
.Full function protection. anti-high voltage circuit design.
.Inner test leads. It’s very portable.
Basic Function ——- Range —— Basic accuracy
DC Voltage —— 400m/4/40/400/600V ——– +-(0.5%+4)
AC Voltage —— 400m/4/40/400/600V ——- +-(0.8%+6)
Resistance —— 400¦¸/4k/40k/400k/4M/40M¦¸ —— +-(0.8%+4)
Capacitance —– 4n/40n/400n/4u/40u/200uF —— +-(3.5%+8)
Frequency ——- 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz —— +-(0.5%+4)
Special Function
Diode test Yes
Continuity buzzer Yes
Low battery indication Yes
Data Hold Yes
Auto power off Yes
Function protection Yes
Frequency Yes
Duty cycle measuring Yes
Input impedance 10§®¦¸
Sampling rate 3 times/s
AC Frequency response 40~400Hz
Operation way Auto range
Max. Display 3999
LCD size 55*43mm
Battery 3V (1.5*2)
Product color Case: dark gray; Holster color£ºyellow
Product Net Weight Approx:108g
Product Dimension 117*80*19mm
Standard Accessories Test leads. battery. instruction manual
Standard inner packing Color box
Standard Quantity Per Carton 80 pcs
Carton size 396*312*433mm
Standard Gross Weight Approx:24.5kg
